FSW Test 003 (prev, next)


Test 003: "Narrowband Telemetry Verification"

This test shall verify the successful collection, sampling rate, formatting, downlinking, and transformation into user units of housekeeping and low-rate science data, alert telemetry, and diagnostic telemetry. If telemetry content is specific to a particular mode (i.e., boot mode or standard operation mode), this test shall verify the correct content as a function of mode.

Context (help)

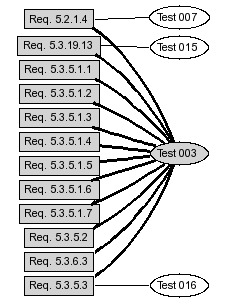

Related Requirement(s) (help)

Section Description Other Tests
5.2 Hardware Interfaces
5.2.1 Hardware Interfaces Internal to the LAT
5.2.1.1 EPU-SIU Interface 006a
5.2.1.2 Interface from the Event Builder 008a
5.2.1.3 Science Data Interface to the Event Builder
5.2.1.4 Command, Configuration, and Data Collection Interface to the Instrument Subsystems 007
5.3 Functional Requirements
5.3.5 Telemetry
5.3.5.1 Housekeeping
5.3.5.1.1 LAT Housekeeping Data to SC
5.3.5.1.2 LAT Housekeeping Data Set
5.3.5.1.3 Housekeeping
5.3.5.1.4 TKR HSK Anomaly Response
5.3.5.1.5 ACD HSK Anomaly Response
5.3.5.1.6 CAL HSK Anomaly Response
5.3.5.1.7 Low Rate Science
5.3.5.2 Diagnostic Telemetry
5.3.5.3 Alert Telemetry 016
5.3.6 Deadtime Management
5.3.6.1 Deadtime during Normal Operations 013b
5.3.6.2 Deadtime During Gamma Ray Bursts 013b
5.3.6.3 Deadtime Monitoring
5.3.19 Thermal Control System (TCS)
5.3.19.1 Inputs to Thermal Control Algorithm
5.3.19.2 Thermal Control Initialization 015
5.3.19.3 Convert ADC to Temperature 015
5.3.19.4 Filter Input 015
5.3.19.5 Determine Heater Setting 015
5.3.19.6 Shut-Down 015
5.3.19.7 Thermal Constraints for Power-On 015
5.3.19.8 Load Shedding Action 015
5.3.19.9 Survival Limit Action 015
5.3.19.10 Watchdog Open 015
5.3.19.11 Watchdog Stop 015
5.3.19.12 Heater Control Signals 015
5.3.19.13 TCS Telemetry 015
