Test 015: "LAT Thermal Control System (TCS)"
This test shall verify that the SIU FSW can properly execute the algorithms of the TCS implementation, and that the TCS implementation successfully maintains the LAT within thermal limits.
Context (help)

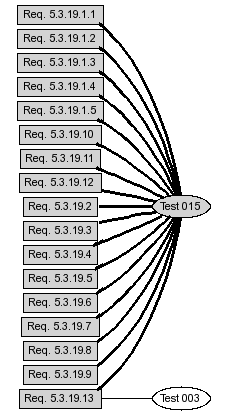

Related Requirement(s) (help)
| Section | Description | Other Tests | |
| 5.3 | Functional Requirements | ||
| 5.3.19 | Thermal Control System (TCS) | ||
| 5.3.19.1 | Inputs to Thermal Control Algorithm | ||
| 5.3.19.1.1 | Sensor to ADC Mapping | ||
| 5.3.19.1.2 | Set of Sensors to be Read | ||
| 5.3.19.1.3 | Set of Sensors for Algorithm | ||
| 5.3.19.1.4 | Raw ADC Data | ||
| 5.3.19.1.5 | Control Parameters | ||
| 5.3.19.2 | Thermal Control Initialization | ||
| 5.3.19.3 | Convert ADC to Temperature | ||
| 5.3.19.4 | Filter Input | ||
| 5.3.19.5 | Determine Heater Setting | ||
| 5.3.19.6 | Shut-Down | ||
| 5.3.19.7 | Thermal Constraints for Power-On | ||
| 5.3.19.8 | Load Shedding Action | ||
| 5.3.19.9 | Survival Limit Action | ||
| 5.3.19.10 | Watchdog Open | ||
| 5.3.19.11 | Watchdog Stop | ||
| 5.3.19.12 | Heater Control Signals | ||
| 5.3.19.13 | TCS Telemetry | 003 |
