FSW Requirement 5.3.13.2.5 (prev, next)

Req. 5.3.13.2.5: "TKR GTRC Rates"

Upon receipt of the appropriate command, the data rate of each GTRC for random trigger (rate > 100 Hz) and trigger rate for each layer (or GTRC, if possible) shall be determined and forwarded to the SC for downlink. (Total data size: ~9 kBytes). Note that three sets of configurations are necessary to measure 36 layers in a tower. One minute per set will be sufficient.

Basis (help)

[1] (3.1.3.2.3, 3.3.3.2, 3.3.3.4), [4] (5.4.6)

    1: "Mission System Spec." (NASA 433-SPEC-0001)

      3.1.3.2.3: "System Checkout and Test On Orbit"

      The GLAST system shall support system checkout and tests in different on/off and operational configurations of observatory system components.

      3.3.3.2: "Information for Diagnostics and Anomalous Conditions"

      The observatory shall have the capability to increase the rate and amount of any or all engineering telemetry to the degree necessary to support observatory diagnostics and to troubleshoot anomalies or failures.

      3.3.3.4: "Impact on Science"

      3.3.3.4.1: "Diagnostics and Troubleshooting"

      The observatory shall include functionalities to enable mission operations personnel to conduct diagnostics and troubleshooting procedures.

    4: "LAT T&DF Subsystem Spec. - Level III Spec." (LAT-SS-00019)

      5.4.6: "Passing of Unfiltered Events"

      The event filtering shall be able to pass a pre-scaled sample of un-filtered events for monitoring and analysis.

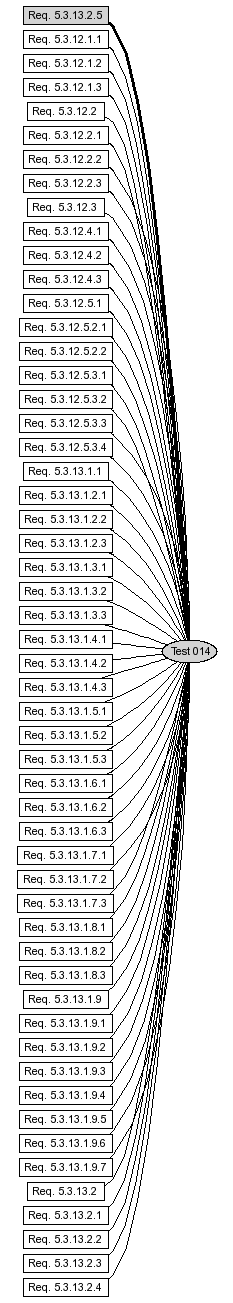

Context (help)

Test(s)

    014: LAT Diagnostic and Calibration Modes

    This test shall verify that the SIU FSW properly transitions to Diagnostic and Calibration Modes upon command, then properly executes the requested diagnostic and calibration algorithms.
