Req. 5.3.13.1.8.1: "CAL Range Occupancy Data Accumulation"

Upon receipt of the appropriate command, FSW shall accumulate histograms of the CAL energy-range occupancy by inspection of the event data stream.

Basis (help)

[1] (3.1.3.2.3, 3.3.3.4)

1: "Mission System Spec." (NASA 433-SPEC-0001)

3.1.3.2.3: "System Checkout and Test On Orbit"

The GLAST system shall support system checkout and tests in different on/off and operational configurations of observatory system components.

3.3.3.4: "Impact on Science"

3.3.3.4.1: "Diagnostics and Troubleshooting"

The observatory shall include functionalities to enable mission operations personnel to conduct diagnostics and troubleshooting procedures.

Context (help)

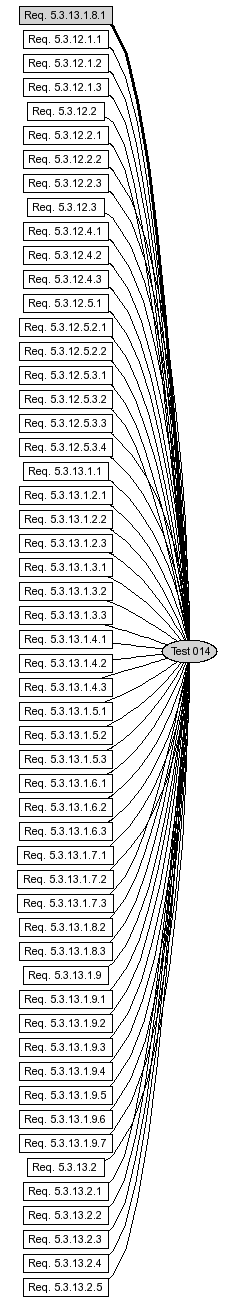

Test(s)

014: LAT Diagnostic and Calibration Modes

This test shall verify that the SIU FSW properly transitions to Diagnostic and Calibration Modes upon command, then properly executes the requested diagnostic and calibration algorithms.
