FSW Requirement 5.3.13.1.1 (prev, next)

Req. 5.3.13.1.1: "ACD Cosmic Ray Sample Events"

Upon receipt of the appropriate command, the FSW shall process a sample of events that are identified as likely to be cosmic rays. Data transmitted would include PHA data for the event (not a spectrum accumulated on board). Note: This data will be used to monitor the MIP peak in the tiles.

Basis (help)

[1] (3.1.3.2.3, 3.3.3.4)

    1: "Mission System Spec." (NASA 433-SPEC-0001)

      3.1.3.2.3: "System Checkout and Test On Orbit"

      The GLAST system shall support system checkout and tests in different on/off and operational configurations of observatory system components.

      3.3.3.4: "Impact on Science"

      3.3.3.4.1: "Diagnostics and Troubleshooting"

      The observatory shall include functionalities to enable mission operations personnel to conduct diagnostics and troubleshooting procedures.

Context (help)

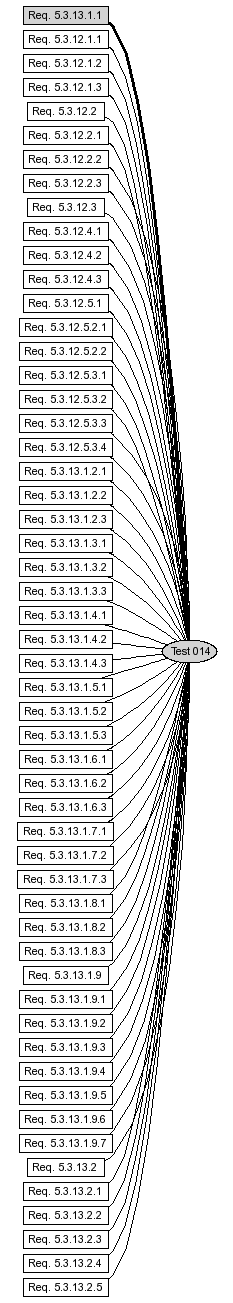

Test(s)

    014: LAT Diagnostic and Calibration Modes

    This test shall verify that the SIU FSW properly transitions to Diagnostic and Calibration Modes upon command, then properly executes the requested diagnostic and calibration algorithms.
