FSW Requirement 5.3.12.5.3.1 (prev, next)

Req. 5.3.12.5.3.1: "CAL Charge Injection Histogram"

The FSW shall histogram the triggered event data, applying a commanded prescaling factor, forming a multi-peaked distribution. Note: The number of triggers at each amplitude is programmable, so that the number of events in each charge peak in the histogrammed data can be matched with the known input pattern of charge amplitudes.

Basis (help)

[1] (3.1.3.2.2), [4] (5.4.14)

    1: "Mission System Spec." (NASA 433-SPEC-0001)

      3.1.3.2.2: "Calibration"

      The GLAST system shall perform calibration observations as required during the course of the mission.

    4: "LAT T&DF Subsystem Spec. - Level III Spec." (LAT-SS-00019)

      5.4.14: "Calibration"

      The dataflow system shall provide commands to calibrate and readout the sub-systems.

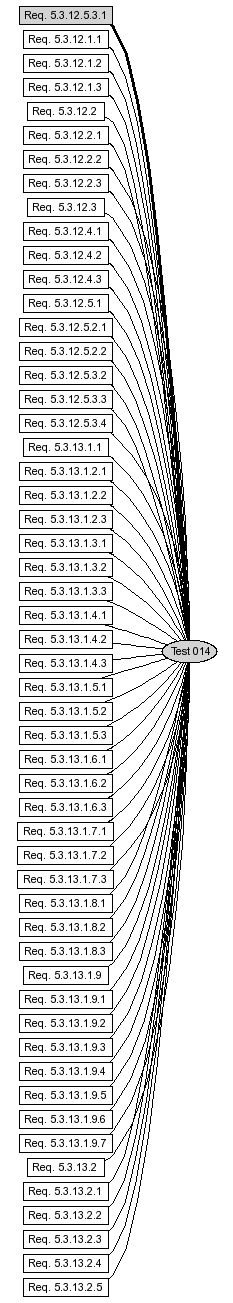

Context (help)

Test(s)

    014: LAT Diagnostic and Calibration Modes

    This test shall verify that the SIU FSW properly transitions to Diagnostic and Calibration Modes upon command, then properly executes the requested diagnostic and calibration algorithms.
