LFILUPLEPU (1601/0x641:4) - Telecommand Packet


"File Upload to EPU" (SVC/FILE)

ITOS Mnemonic:  LFILUPLEPU

View Options: (help)

Context:

Description:

Layout:  (show detail; help)

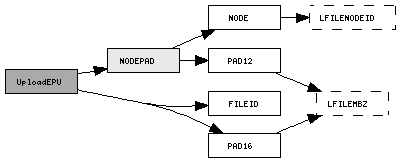

File Upload to EPU (UploadEPU)
Telecommand Packet Format
0x 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
000 Version=0 T=1 SH APID=0x641:4
002 SF=3 Sequence Count
004 Packet Length=11
006 0 Function Code=4
008 NODEPAD flag
00A PAD16 pad16
00C FILEID fileId
010 Packet Checksum

Fields:

      Attribute(s):

      Brief:  "File Storage ID"

      Instance(s):  fileId

      Attribute(s):

      Brief:  "Compound of node ID and padding"

      Instance(s):  flag

      Compound of node ID and padding

      Brief:  "16-bit padding"

      Instance(s):  pad16
