Shape Class Reference

Define a basic geometrical shape, defined by the inside() and distanceTo... More...

#include <Shape.h>

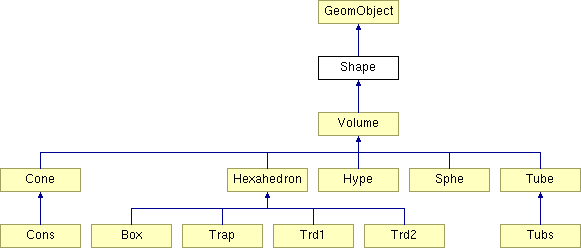

Inheritance diagram for Shape:

List of all members.

Public Methods
virtual double	distanceToLeave ( const Ray& r, double maxStep = FLT_MAX ) const = 0
	return the distance along the Ray to leave (if inside ), or enter (if outside). More...
virtual double	distanceToEnter ( const Ray& r, double maxStep = FLT_MAX ) const = 0
virtual int	inside ( const Point& x ) const = 0
	is the point inside the volume?
void	printOn (std::ostream&) const
	print info about this object. More...
const Point&	center () const
	access to center data member. More...
GeomObject&	transform (const CoordTransform&)
	virtual method to perform transformations that must be implemented by subclasses. More...
virtual Shape&	copy () const
	non-virtual subclasses figure out how to return a copy. More...
virtual int	getBoundaryIndex (const Point& ) const
	allows client using distanceToLeave to associate an index with a boundary, identified by the point. More...
virtual int	lastBoundaryIndex () const
	distanceToLeave sets index of left boundary: client can use. More...
virtual double	getMaxDimension () const
	should be calculated by a subclass which is meant to be the maximum distance from the center. More...
Protected Methods
	Shape ()
Private Methods
	Shape (const Shape& )
Private Attributes
Point	_center

---

Detailed Description

Define a basic geometrical shape, defined by the inside() and distanceTo...

methods This class is abstract

Definition at line 19 of file Shape.h.

---

Constructor & Destructor Documentation

Shape::Shape ( ) [protected]

Definition at line 9 of file Shape.cxx.

Shape::Shape ( const Shape & ) [inline, private]

Definition at line 58 of file Shape.h.

---

Member Function Documentation

const Point & Shape::center ( ) const [inline]

access to center data member. Definition at line 65 of file Shape.h. Referenced by Cone::Cone(), Cons::Cons(), Hype::Hype(), Sphe::Sphe(), Tubs::Tubs(), Hexahedron::addPlane(), Tube::calculateSurfaces(), and Volume::distanceToEnter().

Shape & Shape::copy ( ) const [virtual]

non-virtual subclasses figure out how to return a copy. Definition at line 13 of file Shape.cxx.

virtual double Shape::distanceToEnter ( const Ray & r, double maxStep = FLT_MAX ) const [pure virtual]

Reimplemented in Volume.

double Shape::distanceToLeave ( const Ray & r, double maxStep = FLT_MAX ) const [pure virtual]

return the distance along the Ray to leave (if inside ), or enter (if outside). Can be negative if the origin of the Ray is close to the surface. maxStep is the largest distance required. returns FLT_MAX if no intersection Reimplemented in Volume.

int Shape::getBoundaryIndex ( const Point & p ) const [inline, virtual]

allows client using distanceToLeave to associate an index with a boundary, identified by the point. Reimplemented in Volume. Definition at line 45 of file Shape.h.

double Shape::getMaxDimension ( ) const [inline, virtual]

should be calculated by a subclass which is meant to be the maximum distance from the center. Reimplemented in Volume. Definition at line 51 of file Shape.h.

int Shape::inside ( const Point & x ) const [pure virtual]

is the point inside the volume? Reimplemented in Volume.

int Shape::lastBoundaryIndex ( ) const [inline, virtual]

distanceToLeave sets index of left boundary: client can use. Reimplemented in Volume. Definition at line 48 of file Shape.h.

void Shape::printOn ( std::ostream & os ) const [virtual]

print info about this object. Reimplemented from GeomObject. Reimplemented in Cone, Cons, Hype, Sphe, Trap, Trd1, Trd2, Tube, Tubs, and Volume. Definition at line 25 of file Shape.cxx. Referenced by Volume::printOn(), and Sphe::printOn().

GeomObject & Shape::transform ( const CoordTransform & T ) [virtual]

virtual method to perform transformations that must be implemented by subclasses. Reimplemented from GeomObject. Reimplemented in Volume. Definition at line 32 of file Shape.cxx. Referenced by Volume::transform().

---

Member Data Documentation

Point Shape::_center [private]

Definition at line 61 of file Shape.h.

---

The documentation for this class was generated from the following files:

• Shape.h
• Shape.cxx

---
