LAT-TKR Monitor Report

runID: 356933005
intput file: /scratch/5242/r0356933005_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2012/04/24, 04:03:28
Duration: 5711 seconds
Script version: 1.19.80.2
Script tag: calibTkrUtil-02-09-06-gr02

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.8%
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.7%
Layer averaged hit inefficinecy	NOTE layer efficiency, 89.2% < 90.0%: Tower 0 Layer Y4
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy	ERR layer Occucpancy, 2.5e-01 > 8.0e-02: Tower 3 Layer Y17
Layer averaged TOT peak distribution
Layer displacement from reference [micron]	NOTE layer displacement, | 28.9/5.2 | > 5.0: Tower 0 Layer Y2 layer displacement, | -21.7/3.7 | > 5.0: Tower 3 Layer Y4 layer displacement, | 22.1/4.2 | > 5.0: Tower 6 Layer X13 layer displacement, | -18.7/3.3 | > 5.0: Tower 12 Layer Y2

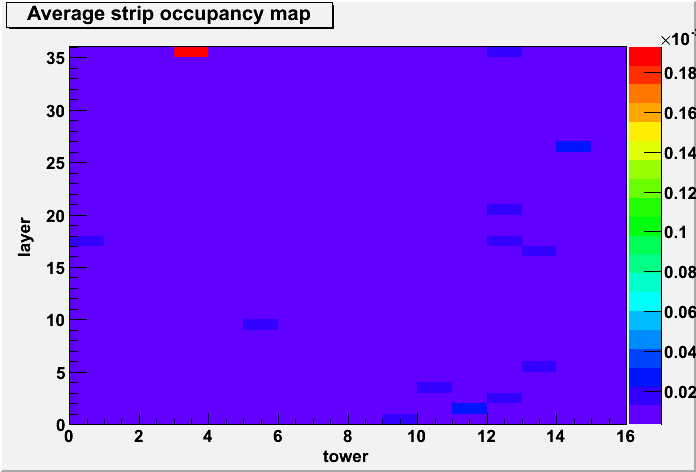

Layer averaged Strip Occupancy	WARN trig-mask required: strip [51, 273, 76, 50, 77, 53, 333, 75, 334, 52]: Tower 3 Layer Y17 trig-mask required: strip [340]: Tower 11 Layer X0 trig-mask required: strip [1396]: Tower 14 Layer X13 data-mask required: strip [51, 273]: Tower 3 Layer Y17 data-mask required: strip [340]: Tower 11 Layer X0 data-mask required: strip [1396]: Tower 14 Layer X13

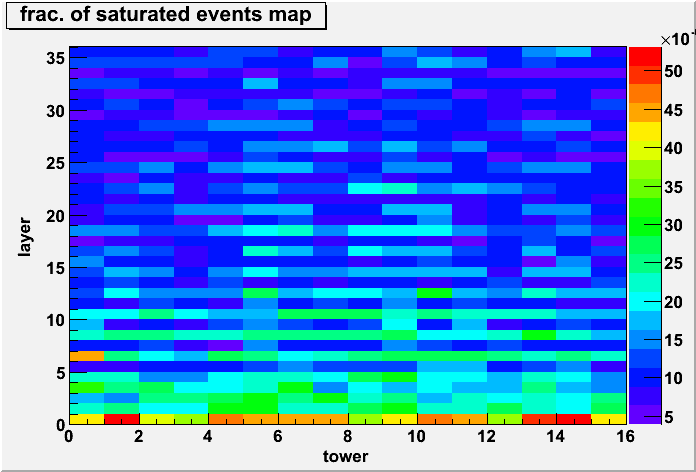

Fraction of Saturated Events
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.21): Tower 0 Layer X1 Dead GTFE(No.3): Tower 0 Layer Y3
