Spectrum Class Reference

base class for energy spectrum objects. More...

#include <Spectrum.h>

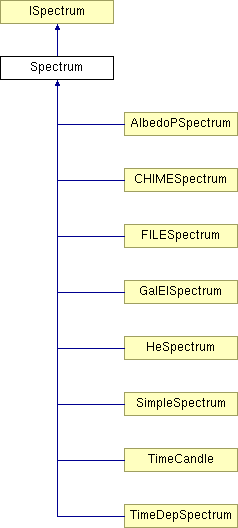

Inheritance diagram for Spectrum::

ISpectrum AlbedoPSpectrum CHIMESpectrum FILESpectrum GalElSpectrum HeSpectrum SimpleSpectrum TimeCandle TimeDepSpectrum List of all members.

Public Methods

virtual float operator() (float) const
virtual const char * particleName () const=0
 subclasses need to specify correct particle type. More...

virtual double flux (double time) const
 calculate the flux, particles/m^2/sr. (default zero). More...

virtual double solidAngle () const
 calcualte effective solid angle (default zero). More...

virtual std::string title () const=0
 return a title describing the spectrum. More...

float fraction (float energy)
 inverse of the operator: given a KE, return number in [0,1) for choosing limits. More...

virtual ~Spectrum ()
virtual double interval (double time)
 a randomized interval to the next event - default is 1/rate(). More...

virtual std::pair< float,
float > 		dir (float energy) const
virtual double energySrc (HepRandomEngine *engine, double time=0)
 new interface for Hirosima classes. More...

virtual std::pair< double,
double > 		dir (double energy, HepRandomEngine *engine)

Protected Methods

 Spectrum (const std::vector< float > &)
 Spectrum ()
virtual void parseParamList (std::string input, std::vector< float > &output) const

Protected Attributes

double m_lat
double m_lon
double m_currentInterval

Detailed Description

base class for energy spectrum objects.

Spectrum is the base class for all of the particle sources internal to FluxSvc.

$Header $

Definition at line 28 of file Spectrum.h.

Constructor & Destructor Documentation

Spectrum::~Spectrum (    )  [virtual]


Definition at line 18 of file Spectrum.cxx.

00018 {}

Spectrum::Spectrum (  const std::vector< float > &    )  [inline, protected]


Definition at line 84 of file Spectrum.h.

00084 {};

Spectrum::Spectrum (    )  [inline, protected]


Definition at line 85 of file Spectrum.h.

00086           : m_lat(0), m_lon(0), m_time(0)*/{}

Member Function Documentation

std::pair< double, double > Spectrum::dir (  double    energy,
HepRandomEngine *    engine
)  [virtual]


Parameters:
dir  direction is either in the format (cos theta, phi) (zenith-local coordinates, or (l,b) (galactic coordinates).

Reimplemented from ISpectrum.

Reimplemented in TimeCandle.

Definition at line 53 of file Spectrum.cxx.

References dir().

00054 {
00055     // default that needs fixing!
00056     return dir(energy);
00057 }

std::pair< float, float > Spectrum::dir (  float    energy )  const [virtual]


Reimplemented in AlbedoPSpectrum, CHIMESpectrum, GalElSpectrum, HeSpectrum, and TimeCandle.

Definition at line 30 of file Spectrum.cxx.

Referenced by dir().

00031 {
00032     // Purpose: return solid angle pair (costh, phi) for the given energy
00033     // Input:: the given energy.
00034     // default: random except for Earth occultation
00035     //here's an attempt at random default distributions as above:
00036     return std::make_pair(((RandFlat::shoot(1.0))*1.4)-0.4,(RandFlat::shoot(1.0))*2*M_PI);
00037
00038 }

double Spectrum::energySrc (  HepRandomEngine *    engine,
double    time = 0
)  [virtual]


new interface for Hirosima classes.

Reimplemented from ISpectrum.

Reimplemented in TimeCandle.

Definition at line 46 of file Spectrum.cxx.

00047 {
00048     // default implementation, which works for other Spectrum objects
00049     return (*this)(engine->flat());
00050 }

double Spectrum::flux (  double    time )  const [virtual]


calculate the flux, particles/m^2/sr. (default zero).

Reimplemented from ISpectrum.

Reimplemented in AlbedoPSpectrum, CHIMESpectrum, GalElSpectrum, HeSpectrum, and TimeDepSpectrum.

Definition at line 21 of file Spectrum.cxx.

Referenced by interval().

00021                                          {
00022     return 0.; // flag that we don't have a flux
00023 }

float Spectrum::fraction (  float    energy )


inverse of the operator: given a KE, return number in [0,1) for choosing limits.

double Spectrum::interval (  double    time )  [virtual]


a randomized interval to the next event - default is 1/rate().

Reimplemented from ISpectrum.

Reimplemented in TimeCandle.

Definition at line 72 of file Spectrum.cxx.

References flux(), and solidAngle().

00073 {
00074     double  r = (solidAngle()*flux(time)*6.);
00075
00076     if (r == 0){ return -1.;
00077     }else{
00078         double p = RandFlat::shoot(1.);
00079         return (-1.)*(log(1.-p))/r;
00080     }
00081 }

virtual float Spectrum::operator() (  float    f )  const [inline, virtual]


Reimplemented in AlbedoPSpectrum, CHIMESpectrum, FILESpectrum, GalElSpectrum, HeSpectrum, SimpleSpectrum, TimeDepSpectrum, and TimeCandle.

Definition at line 37 of file Spectrum.h.

00037 {return 0;};

void Spectrum::parseParamList (  std::string    input,
std::vector< float > &    output
)  const [protected, virtual]


Definition at line 59 of file Spectrum.cxx.

Referenced by AlbedoPSpectrum::AlbedoPSpectrum(), GalElSpectrum::GalElSpectrum(), HeSpectrum::HeSpectrum(), and CHIMESpectrum::init().

00060 {
00061
00062     int i=0;
00063     for(;!input.empty() && i!=std::string::npos;){
00064         float f = ::atof( input.c_str() );
00065         output.push_back(f);
00066         i=input.find_first_of(",");
00067         input= input.substr(i+1);
00068     }
00069 }

const char * Spectrum::particleName (    )  const [pure virtual]


subclasses need to specify correct particle type.

Reimplemented from ISpectrum.

Reimplemented in AlbedoPSpectrum, CHIMESpectrum, FILESpectrum, GalElSpectrum, HeSpectrum, SimpleSpectrum, TimeDepSpectrum, and TimeCandle.

Definition at line 41 of file Spectrum.cxx.

00041                                         {
00042     static const char x='p';
00043     return &x;
00044 }

double Spectrum::solidAngle (    )  const [virtual]


calcualte effective solid angle (default zero).

Reimplemented from ISpectrum.

Reimplemented in AlbedoPSpectrum, CHIMESpectrum, GalElSpectrum, and HeSpectrum.

Definition at line 25 of file Spectrum.cxx.

Referenced by interval().

00026 {
00027     return 1.0; // flag that doesn't calculate
00028 }

virtual std::string Spectrum::title (    )  const [pure virtual]


return a title describing the spectrum.

Reimplemented from ISpectrum.

Reimplemented in AlbedoPSpectrum, CHIMESpectrum, FILESpectrum, GalElSpectrum, HeSpectrum, SimpleSpectrum, TimeDepSpectrum, and TimeCandle.

Member Data Documentation

double Spectrum::m_currentInterval [protected]


Definition at line 92 of file Spectrum.h.

double Spectrum::m_lat [protected]


Definition at line 91 of file Spectrum.h.

Referenced by AlbedoPSpectrum::operator()(), HeSpectrum::rad2(), CHIMESpectrum::rad2(), HeSpectrum::setPosition(), GalElSpectrum::setPosition(), and CHIMESpectrum::setPosition().

double Spectrum::m_lon [protected]


Definition at line 91 of file Spectrum.h.

Referenced by AlbedoPSpectrum::operator()(), HeSpectrum::rad2(), CHIMESpectrum::rad2(), HeSpectrum::setPosition(), GalElSpectrum::setPosition(), and CHIMESpectrum::setPosition().

The documentation for this class was generated from the following files:
