Run Test Report

1.0

Author:: {automatically generated}

Summary

There are 5273 events in /nfs/farm/g/glast/u01/svac_workshop/em_v1r0401p9/mc/TwoTowers/gamma/digi/gamma_100_3.5_0_-300_50_900_10000_0_digi.root.

Trigger

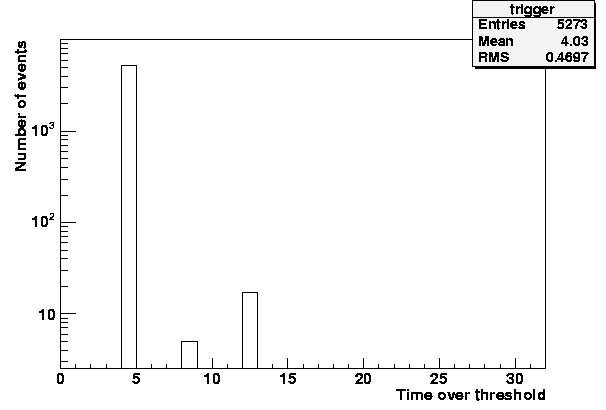

Trigger distribution

Strip hit info

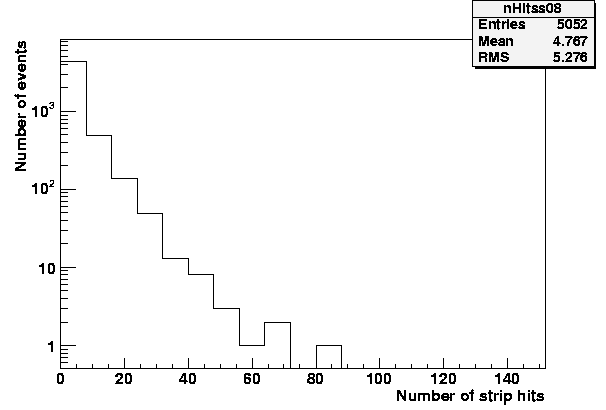

Number of hit strips in tower 08

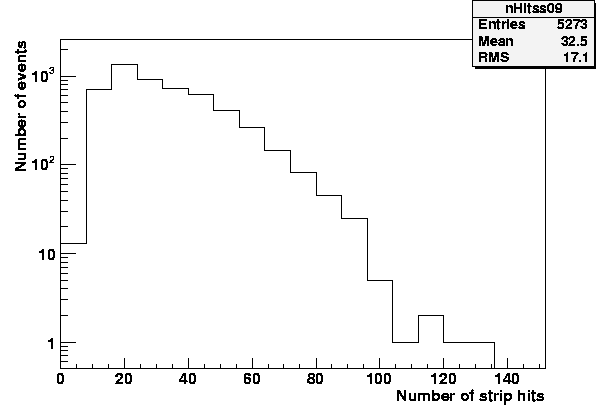

Number of hit strips in tower 09

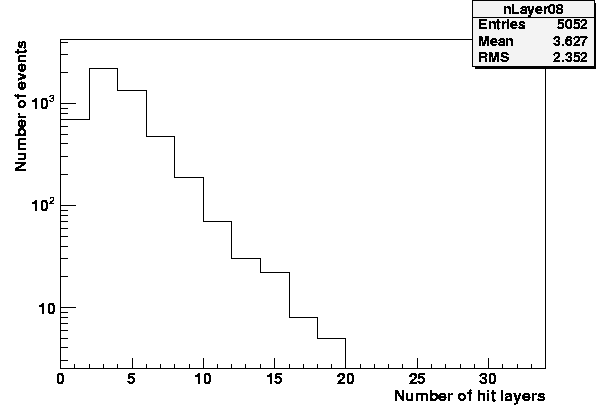

Number of hit layers in tower 08

Number of hit layers in tower 09

Number of events with different numer of TKR digis. There are 5268 events with 3 in a row TKR trigger.
Number of TKR digis Number of TKR events percentage

0 0 0%

1 0 0%

2 0 0%

3 0 0%

4 0 0%

5 0 0%

>= 6 5268 100%

Number of events with different numer of TKR digis. There are 5268 events with 3 in a row TKR trigger.
Number of TKR digis	Number of TKR events	percentage
0	0	0%
1	0	0%
2	0	0%
3	0	0%
4	0	0%
5	0	0%
>= 6	5268	100%

Bad Strips:

There are 0 events with strip ID outside the range from 0 to 1535.
There are 0 events with more than 63 strips per GTRC.

Time Over Threshold

TOT info:

There are 189 events with saturated TOT values.
There are 1299 events with zero TOT on one plane but nonzero number of strip hits in that plane.
There are 0 events with nonzero TOT on one plane but no strip hits in that plane.

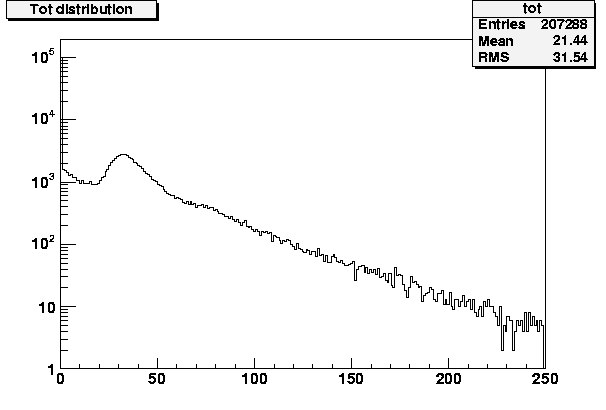

TOT distribution

Generated on Mon Jun 14 17:22:24 2004 for TestReport by

1.3-rc3
