Req. 5.3.7.12.3: "Memory Dump Data"

Upon receipt of a command to perform a memory dump, the FSW shall transmit the requested data to the spacecraft via the CTDB.

Basis (help)

[1] (3.1.3.1), [2] (3.2.6.2.5)

1: "Mission System Spec." (NASA 433-SPEC-0001)

3.1.3.1: "Fault Handling Capability"

The GLAST system shall provide the capability for resolving flight hardware and software faults and anomalies.

2: "LAT Instrument - Spacecraft Interface Requirements Doc." (NASA 433-IRD-0001)

3.2.6.2.5: "LAT Object Dumps"

The LAT shall dump Object contents (software and data) by command. The format and content of the Object Dumps will be documented in the SC-LAT ICD.

Context (help)

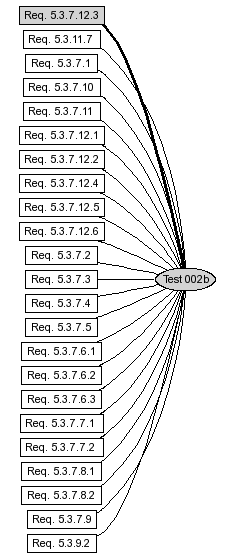

Test(s)

002b: File Management and Memory Upload and Dump Verification

This test shall verify that the FSW can, on command, report file system status, create and delete file directories, dump directories, delete files, copy files (on a single SIU or EPU, and from an SIU to an EPU), dump files, and load files during (SIU) primary boot. This test shall also verify the capability to successfully upload data into a specified block of SIU or EPU memory and verify the correct memory contents. This test shall also demonstrate the successful dump of the contents of a specific block of SIU or EPU memory. Finally, the test verifies that the event filter can be reprogrammed by choosing or replacing files in the file system.
