"Set up the SMON statistics monitor" (APP/LCM)

ITOS Mnemonic:  LCMSTATS

View Options: (help)

Focus:	Maintenance / Operation
Structures:	Abstract / Concrete

Context:

Description:

This command sets up a timer to collect statistics data from various hardware at the requested sampling interval, compresses the data, then sends them to the SSR.

Layout:  (hide detail; help)

Set up the SMON statistics monitor (Stats) Telecommand Packet Format
0x	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
000	Version=0			T=1	SH	APID=0x695:5
002	SF=3		Sequence Count
004	Packet Length=23
006	0	Function Code=5
008	PAD16 pad16
00A	ITC_NodeId nodeId								STATSID timerID
00C	STATSMASK statMask
010	STATSOPTIONMASK optionMask
014	STATSTIMELEN timeLen
018	STATSTIMESAMP timeSample
01C	Packet Checksum

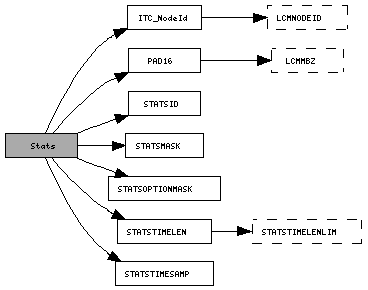

Stats (pkt)
|  PAD16 pad16 (fld)
|  ITC_NodeId nodeId (fld)
|  STATSID timerID (fld)
|  STATSMASK statMask (fld)
|  STATSOPTIONMASK optionMask (fld)
|  STATSTIMELEN timeLen (fld)
|  STATSTIMESAMP timeSample (fld)

typedef struct _LCM_Stats_Pkt {

    /* CCSDS header */
    char                 hdr[8];

    /* Command payload */
    LCM_Stats_Prm        pay;

} LCM_Stats_Pkt;

Fields:

ITC_NodeId (index)

Attribute(s):  LCMNODEID

Brief:  "ITC node ID"

Instance(s):  nodeId

PAD16 (index)

Attribute(s):  LCMMBZ

Brief:  "16-bit Padding Word"

Instance(s):  pad16

STATSID (index)

Attribute(s):

Brief:  "Stat Monitor Timer ID (0,1,2)"

Instance(s):  timerID

STATSMASK (index)

Attribute(s):

Brief:  "Specify which HW to monitor for stats"

Instance(s):  statMask

STATSOPTIONMASK (index)

Attribute(s):

Brief:  "Specify options in Stat Monitor"

Instance(s):  optionMask

STATSTIMELEN (index)

Attribute(s):  STATSTIMELENLIM

Brief:  "Stat Monitor Time Len (sec)"

Instance(s):  timeLen

Stat Monitor Time Len (sec)

STATSTIMESAMP (index)

Attribute(s):

Brief:  "Monitor time sample (milliSec)"

Instance(s):  timeSample
