"Memory Pool Statistics Dump" (SVC/MEM)

View Options: (help)

Focus:	Maintenance / Operation
Structures:	Abstract / Concrete

Context:

Description:

Dump of memory pool statistics.

Layout:  (show detail; help)

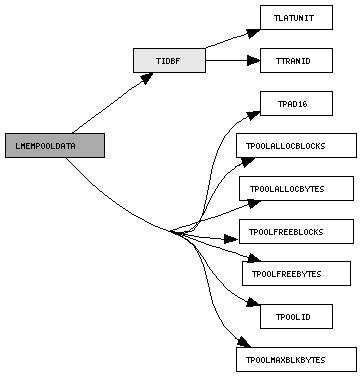

Memory Pool Statistics Dump (LMEMPOOLDATA) Telemetry Packet Format
0x	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
000	Version=0			T=0	SH	APID=0x311
002	SF		Sequence Count
004	Packet Length=33
006	Timestamp
00E	TIDBF idents
010	TPOOLID poolID
012	TPAD16 pad
014	TPOOLFREEBYTES freeBytes
018	TPOOLFREEBLOCKS freeBlocks
01C	TPOOLMAXBLKBYTES maxBlockBytes
020	TPOOLALLOCBYTES allocBytes
024	TPOOLALLOCBLOCKS allocBlocks

Fields:

TIDBF (index)

Attribute(s):

Brief:  "LAT Unit and Transaction ID Bitfield"

Instance(s):  idents

Bitfield containing the ID of the LAT unit that sent the telemetry and the transaction identifier of the telecommand that requested the telemetry.

TPAD16 (index)

Attribute(s):

Brief:  "16-Bit Padding"

Instance(s):  pad

Explicit padding of 16 bits.

TPOOLALLOCBLOCKS (index)

Attribute(s):

Brief:  "Memory Pool Allocated Blocks"

Instance(s):  allocBlocks

Number of blocks allocated within the memory pool.

TPOOLALLOCBYTES (index)

Attribute(s):

Brief:  "Memory Pool Allocated Bytes"

Instance(s):  allocBytes

Number of bytes allocated within the memory pool.

TPOOLFREEBLOCKS (index)

Attribute(s):

Brief:  "Memory Pool Free Blocks"

Instance(s):  freeBlocks

Number of free blocks within the memory pool.

TPOOLFREEBYTES (index)

Attribute(s):

Brief:  "Memory Pool Free Bytes"

Instance(s):  freeBytes

Number of free bytes within the memory pool.

TPOOLID (index)

Attribute(s):

Brief:  "Memory Pool ID"

Instance(s):  poolID

Identifier for the memory pool for which the statistics were dumped.

TPOOLMAXBLKBYTES (index)

Attribute(s):

Brief:  "Memory Pool Maximum Block Size"

Instance(s):  maxBlockBytes

Size, in bytes, of the largest free block within the memory pool.
