"Memory Symbol Lookup" (SVC/MEM)

ITOS Mnemonic:  LMEMDUMPSYMVAL

View Options: (help)

Focus:	Maintenance / Operation
Structures:	Abstract / Concrete

Context:

Description:

Dump the value of a symbol.

Layout:  (show detail; help)

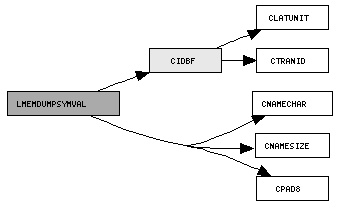

Memory Symbol Lookup (LMEMDUMPSYMVAL) Telecommand Packet Format
0x	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
000	Version=0			T=1	SH	APID=0x644:8
002	SF=3		Sequence Count
004	Packet Length=55
006	0	Function Code=8
008	CIDBF idents
00A	CNAMESIZE nameSize								CPAD8 pad
00C	CNAMECHAR name[0-47]
03C	Packet Checksum

Fields:

CIDBF (index)

Attribute(s):

Brief:  "LAT Unit and Transaction ID Bitfield"

Instance(s):  idents

Bitfield to contain the LAT unit that is the target of a MEM telecommand and the transaction ID for the MEM telecommand.

CNAMECHAR (index)

Attribute(s):

Brief:  "Symbol Name Character"

Instance(s):  name

Character within a symbol name.

CNAMESIZE (index)

Attribute(s):

Brief:  "Symbol Name Length"

Instance(s):  nameSize

Length of symbol name, in bytes.

CPAD8 (index)

Attribute(s):

Brief:  "8-bit padding"

Instance(s):  pad

Explicit padding of 8 bits.
