"SIU Statistics" (APP/LHK)

View Options: (help)

Focus:	Maintenance / Operation
Structures:	Abstract / Concrete

Context:

Description:

Contains SIU CPU temperature and loading metrics, file statistics, and memory statistics.

Layout:  (show detail; help)

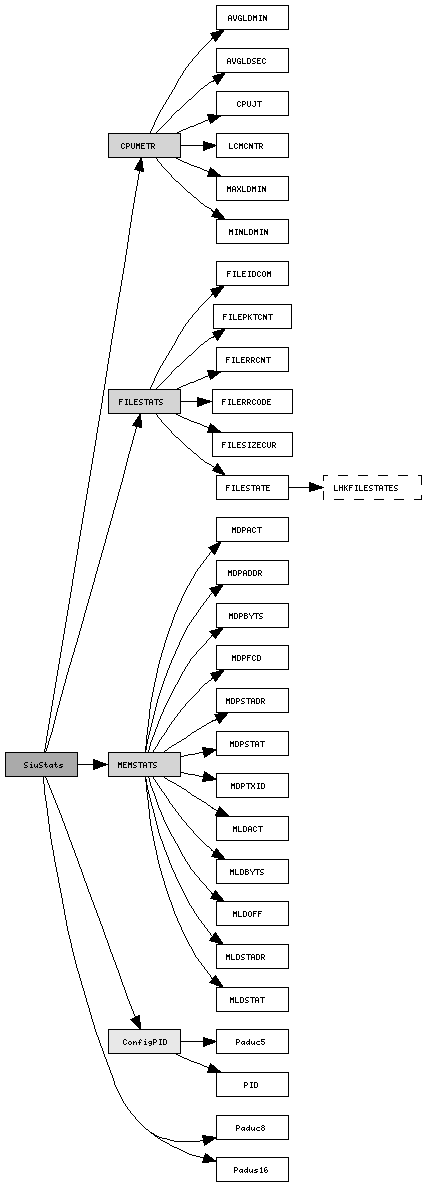

SIU Statistics (SiuStats) Telemetry Packet Format
0x	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
000	Version=0			T=0	SH	APID=0x22A
002	SF		Sequence Count
004	Packet Length=109
006	Timestamp
00E	Padus16 spare0[0-1]
012	Paduc8 spare1								ConfigPID pids
014	CPUMETR cpu
02C	FILESTATS file
044	MEMSTATS mem

Fields:

ConfigPID (index)

Attribute(s):

Brief:  "Structure to capture rad750 input PID states"

Instance(s):  pids

Structure to capture rad750 input PID states

CPUMETR (index)

Attribute(s):

Brief:  "CPU Metrics"

Instance(s):  cpu

Structure containing metrics for a single CPU including junction temperatue and loading statistics.

FILESTATS (index)

Attribute(s):

Brief:  "FILE Upload Statistics"

Instance(s):  file

Describes the FILE upload current state.

MEMSTATS (index)

Attribute(s):

Brief:  "MEM Statistics"

Instance(s):  mem

Contains statistics for the MEM task.

Paduc8 (index)

Attribute(s):

Brief:  "Explicit 8 bit pad in unsigned char"

Instance(s):  spare1

Explicit 8 bit pad in unsigned char

Padus16 (index)

Attribute(s):

Brief:  "Explicit 16 bit pad in unsigned short"

Instance(s):  spare0

Explicit 16 bit pad in unsigned short
