"Diagnostic ITC/MSG configuration of tasks on EPU2" (APP/LHK)

View Options: (help)

Focus:	Maintenance / Operation
Structures:	Abstract / Concrete

Context:

Description:

Diagnostic ITC/MSG configuration of tasks on EPU2

Layout:  (show detail; help)

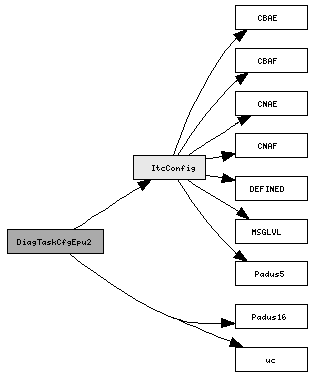

Diagnostic ITC/MSG configuration of tasks on EPU2 (DiagTaskCfgEpu2) Telemetry Packet Format
0x	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
000	Version=0			T=0	SH	APID=0x2A8
002	SF		Sequence Count
004	Packet Length=109
006	Timestamp
00E	Padus16 rsv
010	Padus16 spare0
012	uc ctdb								uc ssr
014	ItcConfig task[0-31]
054	Padus16 pad[0-15]

Fields:

ItcConfig (index)

Attribute(s):

Brief:  "ITC configuration of a single task"

Instance(s):  task

ITC configuration of a single task

Padus16 (index)

Attribute(s):

Brief:  "Explicit 16 bit pad in unsigned short"

Instance(s):  pad, rsv, spare0

Explicit 16 bit pad in unsigned short

uc (index)

Attribute(s):

Brief:  "Unsigned char"

Instance(s):  ctdb, ssr

Unsigned char
