Diagnostic CTDB (1553) counters

Layout:  (show detail; help)

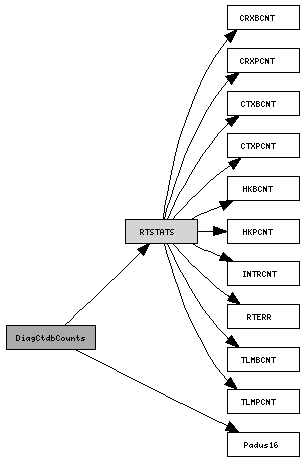

Diagnostic CTDB (1553) counters (DiagCtdbCounts) Telemetry Packet Format
0x	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
000	Version=0			T=0	SH	APID=0x2B2
002	SF		Sequence Count
004	Packet Length=109
006	Timestamp
00E	Padus16 rsv
010	RTSTATS hsk
038	Padus16 spare0[0-29]

Fields:

Padus16 (index)

Attribute(s):

Brief:  "Explicit 16 bit pad in unsigned short"

Instance(s):  rsv, spare0

Explicit 16 bit pad in unsigned short

RTSTATS (index)

Attribute(s):

Brief:  "1553 Remote Terminal Statistics"

Instance(s):  hsk

Contains the 1553 RT driver statistics.
