"File Upload Commit" (SVC/FILE)

ITOS Mnemonic:  LFILUPLCOMMIT

View Options: (help)

Focus:	Maintenance / Operation
Structures:	Abstract / Concrete

Context:

Description:

This command indicates that the loaded LFILUPLDATA file data contents should be written to storage. The FILEID paramter indicates the storage location. The complete file data set is first validated before successfully entering the COMMIT state. The validate only flag in the FILEFLAGS parameter indicates that validations errors shoud be reported, but that the file upload state machine will remain in the LOAD state regardless of the validation outcome.

Layout:  (show detail; help)

File Upload Commit (UploadCommit) Telecommand Packet Format
0x	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
000	Version=0			T=1	SH	APID=0x641:2
002	SF=3		Sequence Count
004	Packet Length=11
006	0	Function Code=2
008	NODEPAD flag
00A	FILEFLAGS fileFlags
00C	FILEID fileId
010	Packet Checksum

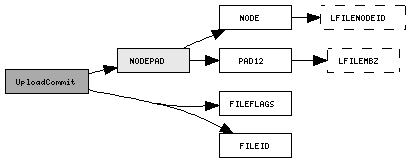

Fields:

FILEFLAGS (index)

Attribute(s):

Brief:  "File Commit Flags"

Instance(s):  fileFlags

FILEID (index)

Attribute(s):

Brief:  "File Storage ID"

Instance(s):  fileId

NODEPAD (index)

Attribute(s):

Brief:  "Compound of node ID and padding"

Instance(s):  flag

Compound of node ID and padding
