LCTDBRTDIAG (526/0x20E) - Telemetry Packet


"CTDB 1553 RT Driver Diagnostics" (DRV/CTDB)

View Options: (help)

Context:

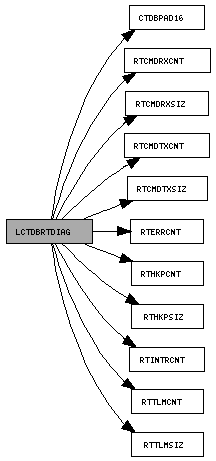

Description:

Layout:  (show detail; help)

CTDB 1553 RT Driver Diagnostics (LCTDBRTDIAG)
Telemetry Packet Format
0x 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
000 Version=0 T=0 SH APID=0x20E
002 SF Sequence Count
004 Packet Length=49
006 Timestamp
00E CTDBPAD16 pad_16
010 RTERRCNT error_count
014 RTINTRCNT intr_count
018 RTCMDRXCNT cmd_rx_pkt_count
01C RTCMDRXSIZ cmd_rx_byte_count
020 RTCMDTXCNT cmd_tx_pkt_count
024 RTCMDTXSIZ cmd_tx_byte_count
028 RTHKPCNT hkp_pkt_count
02C RTHKPSIZ hkp_byte_count
030 RTTLMCNT telem_pkt_count
034 RTTLMSIZ telem_byte_count

Fields:

      Attribute(s):

      Brief:  "16 bit spare padding word"

      Instance(s):  pad_16

      Attribute(s):

      Brief:  "RT driver telecommand receive count"

      Instance(s):  cmd_rx_pkt_count

      Attribute(s):

      Brief:  "RT driver telecommand receive total bytes"

      Instance(s):  cmd_rx_byte_count

      Attribute(s):

      Brief:  "RT driver telecommand send count"

      Instance(s):  cmd_tx_pkt_count

      Attribute(s):

      Brief:  "RT driver telecommand send total bytes"

      Instance(s):  cmd_tx_byte_count

      Attribute(s):

      Brief:  "RT driver total error count"

      Instance(s):  error_count

      Attribute(s):

      Brief:  "RT driver HKP send count"

      Instance(s):  hkp_pkt_count

      Attribute(s):

      Brief:  "RT driver HKP send total bytes"

      Instance(s):  hkp_byte_count

      Attribute(s):

      Brief:  "RT driver total interrupt count"

      Instance(s):  intr_count

      Attribute(s):

      Brief:  "RT driver telemetry send count"

      Instance(s):  telem_pkt_count

      Attribute(s):

      Brief:  "RT driver telemetry send total bytes"

      Instance(s):  telem_byte_count
