"ITC/MSG configuration of tasks on SIU" (APP/LHK)

View Options: (help)

Focus:	Maintenance / Operation
Structures:	Abstract / Concrete

Context:

Description:

ITC/MSG configuration of tasks on SIU

Layout:  (hide detail; help)

ITC/MSG configuration of tasks on SIU (TaskCfgSiu) Telemetry Packet Format
0x	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
000	Version=0			T=0	SH	APID=0x245
002	SF		Sequence Count
004	Packet Length=109
006	Timestamp
00E	Padus16 rsv
010	Padus16 spare0
012	uc ctdb								uc ssr
014	ItcConfig task[0-31]
054	Padus16 pad[0-15]

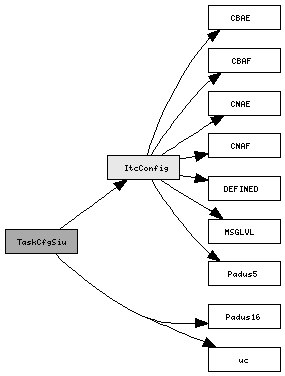

TaskCfgSiu (pkt)
|  Padus16 rsv (fld) ... spare0 (fld)
|  uc ctdb (fld) ... ssr (fld)
|  ItcConfig task[0-31] (bf)
|  |  DEFINED defined (0)
|  |  Padus5 spare (1-5)
|  |  MSGLVL msg_level (6-7)
|  |  CNAE cn_ae (8-9)
|  |  CNAF cn_af (10-11)
|  |  CBAE cb_ae (12-13)
|  |  CBAF cb_af (14-15)
|  Padus16 pad[0-15] (fld)

typedef struct _LHK_TaskCfgSiu_Tlm {

    /* Telemetry header */
    char                 hdr[14];

    /* Explicit 16 bit pad in unsigned short */
    unsigned short       rsv;

    /* Explicit 16 bit pad in unsigned short */
    unsigned short       spare0;

    /* Unsigned char */
    unsigned char        ctdb;

    /* Unsigned char */
    unsigned char        ssr;

    /* ITC configuration of a single task */
    LHK_ItcConfig        task[32];

    /* Explicit 16 bit pad in unsigned short */
    unsigned short       pad[16];

} LHK_TaskCfgSiu_Tlm;

Fields:

ItcConfig (index)

Attribute(s):

Brief:  "ITC configuration of a single task"

Instance(s):  task

ITC configuration of a single task

Padus16 (index)

Attribute(s):

Brief:  "Explicit 16 bit pad in unsigned short"

Instance(s):  pad, rsv, spare0

Explicit 16 bit pad in unsigned short

uc (index)

Attribute(s):

Brief:  "Unsigned char"

Instance(s):  ctdb, ssr

Unsigned char
