"Set the values of the trace enable bits." (APP/LSW)

ITOS Mnemonic:  LSWSETTRACECFG

View Options: (help)

Focus:	Maintenance / Operation
Structures:	Abstract / Concrete

Context:

Description:

Set the values of the trace enable bits. Each enable is controlled by one bit (bit set means enable). The CONFIGMASK and CONFIGVALU fields operate as a selective set and clear pair. Only bits set in CONFIGMASK will be touched. For those bits, the enable will be set to the equivalent bit in CONFIGVALU.

Layout:  (show detail; help)

Set the values of the trace enable bits. (SetTraceConfig) Telecommand Packet Format
0x	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
000	Version=0			T=1	SH	APID=0x64C:4
002	SF=3		Sequence Count
004	Packet Length=15
006	0	Function Code=4
008	NODETRANID flag
00A	PAD16 pad
00C	CONFIGBITS mask
010	CONFIGBITS valu
014	Packet Checksum

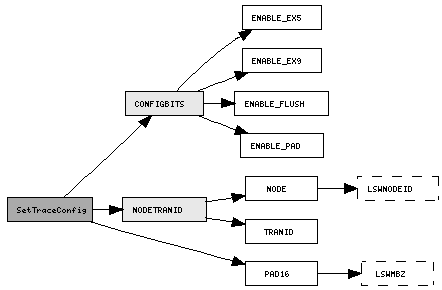

Fields:

CONFIGBITS (index)

Attribute(s):

Brief:  "Definition of trace enable bits"

Instance(s):  mask, valu

Definition of trace enable bits

NODETRANID (index)

Attribute(s):

Brief:  "Compound of node and transaction ID"

Instance(s):  flag

Compound of node and transaction ID

PAD16 (index)

Attribute(s):  LSWMBZ

Brief:  "16 bits of padding"

Instance(s):  pad

16 bits of padding
