"Dump a code trace by numeric identifier" (APP/LSW)

ITOS Mnemonic:  LSWDUMPTRACEID

View Options: (help)

Focus:	Maintenance / Operation
Structures:	Abstract / Concrete

Context:

Description:

Dump a code trace by numeric identifier. The value zero is reserved for the system trace.

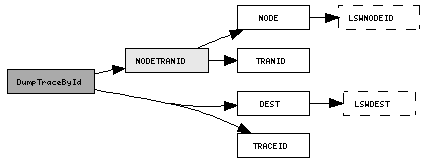

Layout:  (show detail; help)

Dump a code trace by numeric identifier (DumpTraceById) Telecommand Packet Format
0x	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
000	Version=0			T=1	SH	APID=0x64C:2
002	SF=3		Sequence Count
004	Packet Length=7
006	0	Function Code=2
008	NODETRANID flag
00A	DEST dest								TRACEID id
00C	Packet Checksum

Fields:

DEST (index)

Attribute(s):  LSWDEST

Brief:  "Destination for a dump"

Instance(s):  dest

Destination for a dump

NODETRANID (index)

Attribute(s):

Brief:  "Compound of node and transaction ID"

Instance(s):  flag

Compound of node and transaction ID

TRACEID (index)

Attribute(s):

Brief:  "Trace identifier"

Instance(s):  id

All traces are identified by a (small) number and a (short) name, and can be dumped using either identification method. For dumps by identifier, this is the identifier.
