"Control operation" (APP/LRA)

ITOS Mnemonic:  LRACONTROL

View Options: (help)

Focus:	Maintenance / Operation
Structures:	Abstract / Concrete

Context:

Description:

Perform a control operation on a LAT component.

Layout:  (show detail; help)

Control operation (CONTROL) Telecommand Packet Format
0x	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
000	Version=0			T=1	SH	APID=0x680:3
002	SF=3		Sequence Count
004	Packet Length=11
006	0	Function Code=3
008	CMPNT cmpnt								BLOCK block
00A	TEM tem								CC cc
00C	RC rc								FE fe
00E	REG reg								PAD pad
010	Packet Checksum

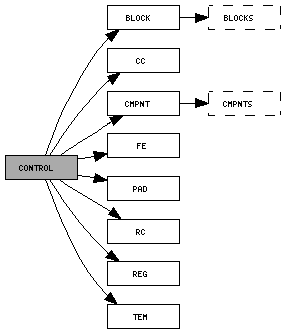

Fields:

BLOCK (index)

Attribute(s):  BLOCKS

Brief:  "Register block"

Instance(s):  block

The register block number to access, for components that have more than one such block.

CC (index)

Attribute(s):

Brief:  "Cable controller"

Instance(s):  cc

The cable controller number, for those components accessed via a CC.

CMPNT (index)

Attribute(s):  CMPNTS

Brief:  "Component"

Instance(s):  cmpnt

The LRA component number of the detector component (GEM, EBM, TEM, etc) to access.

FE (index)

Attribute(s):

Brief:  "Front-end number"

Instance(s):  fe

The front-end number, for those components located on a front-end.

PAD (index)

Attribute(s):

Brief:  "Padding"

Instance(s):  pad

Padding field to make length an even number of bytes.

RC (index)

Attribute(s):

Brief:  "Readout controller"

Instance(s):  rc

The readout controller number, for those components accessed via an RC.

REG (index)

Attribute(s):

Brief:  "Register"

Instance(s):  reg

The number of the register to access.

TEM (index)

Attribute(s):

Brief:  "TEM number"

Instance(s):  tem

The TEM number to access, for those components that are TEM-based.
