"PDU Environmental Packet 2" (APP/LHK)

View Options: (help)

Focus:	Maintenance / Operation
Structures:	Abstract / Concrete

Context:

Description:

PDU Environmental Packet 2

Layout:  (show detail; help)

PDU Environmental Packet 2 (PduEnv2) Telemetry Packet Format
0x	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
000	Version=0			T=0	SH	APID=0x220
002	SF		Sequence Count
004	Packet Length=109
006	Timestamp
00E	Padus16 rsv
010	Padus16 spare0[0-1]
014	ADC VchpXlhp[0-11]
02C	ADC VchpDshp[0-11]
044	ADC VchpRsvr[0-11]
05C	Padus16 spare1[0-11]

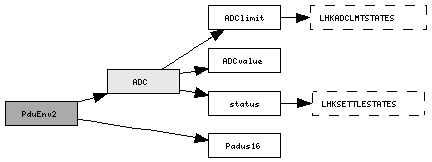

Fields:

ADC (index)

Attribute(s):

Brief:  "An ADC result"

Instance(s):  VchpDshp, VchpRsvr, VchpXlhp

A compound of ADC readout and limit evaluation

Padus16 (index)

Attribute(s):

Brief:  "Explicit 16 bit pad in unsigned short"

Instance(s):  rsv, spare0, spare1

Explicit 16 bit pad in unsigned short
