TEM temperature ADCs for TEMs 8-9

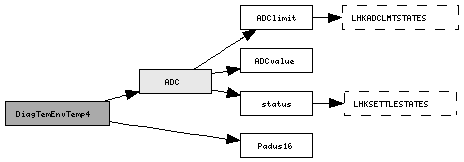

Layout: (show detail; help)
| TEM temperature ADCs for TEMs 8-9 (DiagTemEnvTemp4) Telemetry Packet Format |
||||||||||||||||
| 0x | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
| 000 | Version=0 | T=0 | SH | APID=0x27A | ||||||||||||
| 002 | SF | Sequence Count | ||||||||||||||
| 004 | Packet Length=109 | |||||||||||||||
| 006 | Timestamp | |||||||||||||||
| 00E | Padus16 rsv | |||||||||||||||
| 010 | Padus16 spare[0-1] | |||||||||||||||
| 014 | ADC adc[0-47] | |||||||||||||||
Fields:
-
Attribute(s):
-
Brief: "An ADC result"
-
Instance(s): adc
A compound of ADC readout and limit evaluation
-
Attribute(s):
-
Brief: "Explicit 16 bit pad in unsigned short"
-
Instance(s): rsv, spare
Explicit 16 bit pad in unsigned short
