"Diagnostic EPU1 status packet" (APP/LHK)

View Options: (help)

Focus:	Maintenance / Operation
Structures:	Abstract / Concrete

Context:

Description:

Contains: EPU1 CPU hardware error statistics (PCI errors, correctable and uncorrectable memory errors), CPU junction temperature, memory scrubbing status, file statistics, and memory statistics.

Layout:  (show detail; help)

Diagnostic EPU1 status packet (DiagStatusEpu1) Telemetry Packet Format
0x	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
000	Version=0			T=0	SH	APID=0x2A2
002	SF		Sequence Count
004	Packet Length=109
006	Timestamp
00E	Padus16 rsv
010	ui uptime
014	us pci
016	us cme
018	us ume
01A	us jt
01C	ScrubStatus scrub
028	ConfigPID pid								ConfigTHS ths
02A	Padus16 spare1
02C	FILESTATS fil
044	MEMSTATS mem

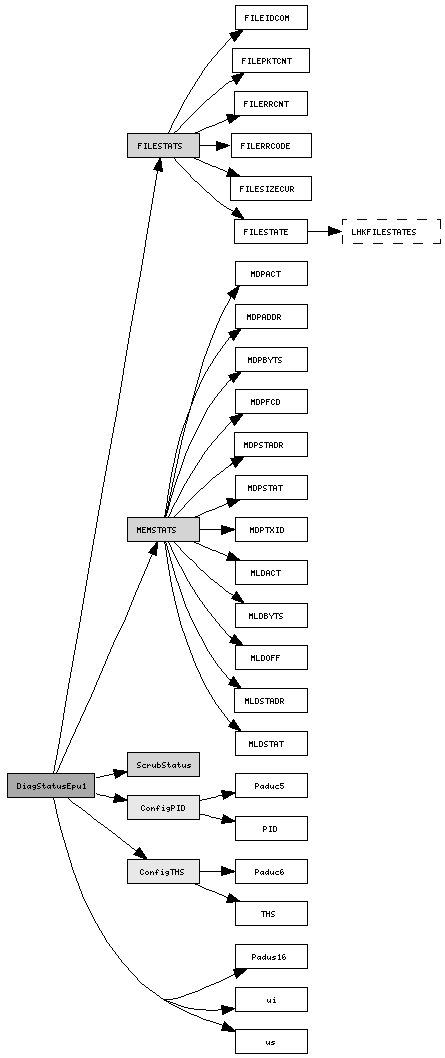

Fields:

ConfigPID (index)

Attribute(s):

Brief:  "Structure to capture rad750 input PID states"

Instance(s):  pid

Structure to capture rad750 input PID states

ConfigTHS (index)

Attribute(s):

Brief:  "Structure to capture the THS imulation bits"

Instance(s):  ths

Structure to capture the THS imulation bits

FILESTATS (index)

Attribute(s):

Brief:  "FILE Upload Statistics"

Instance(s):  fil

Describes the FILE upload current state.

MEMSTATS (index)

Attribute(s):

Brief:  "MEM Statistics"

Instance(s):  mem

Contains statistics for the MEM task.

Padus16 (index)

Attribute(s):

Brief:  "Explicit 16 bit pad in unsigned short"

Instance(s):  rsv, spare1

Explicit 16 bit pad in unsigned short

ScrubStatus (index)

Attribute(s):

Brief:  "Status of the memory scrubbing subsystem"

Instance(s):  scrub

Status of the memory scrubbing subsystem

ui (index)

Attribute(s):

Brief:  "Unsigned int"

Instance(s):  uptime

Unsigned int

us (index)

Attribute(s):

Brief:  "Unsigned short"

Instance(s):  cme, jt, pci, ume

Unsigned short
