"Diagnostic Thermal Control Data Packet 0" (APP/LHK)

View Options: (help)

Focus:	Maintenance / Operation
Structures:	Abstract / Concrete

Context:

Description:

Layout:  (show detail; help)

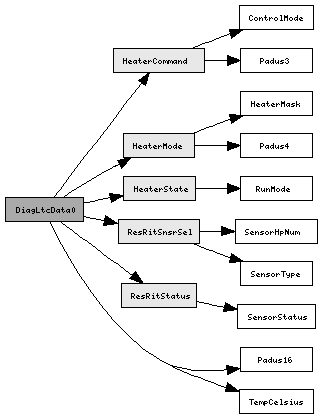

Diagnostic Thermal Control Data Packet 0 (DiagLtcData0) Telemetry Packet Format
0x	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
000	Version=0			T=0	SH	APID=0x28E
002	SF		Sequence Count
004	Packet Length=109
006	Timestamp
00E	Padus16 spares[0-2]
014	ResRitSnsrSel snsrSel[0-11]
02C	ResRitStatus snsrStatus[0-11]
038	HeaterMode actvHp
03A	HeaterCommand htrCmd
03C	HeaterState htrReg
03E	TempCelsius temps[0-23]
06E	Padus16 spare[0-2]

Fields:

HeaterCommand (index)

Attribute(s):

Brief:  "Current heater command and LTC control mode"

Instance(s):  htrCmd

For the heater bits, a value of '0' indicates that LTC is commanding the heater off. A value of '1' indicates that LTC is commanding the heater on. These heater commands are applied only when LTC is in active control mode.

HeaterMode (index)

Attribute(s):

Brief:  "Control mode for VCHP heaters."

Instance(s):  actvHp

A bit value of '0' indicates that the heater is under manual, user control. A bit value of '1' indicates that the heater is under automatic, algorithm control.

HeaterState (index)

Attribute(s):

Brief:  "Current heater state and LTC run mode"

Instance(s):  htrReg

For the heater bits, a value of '0' indicates that the heater is currently off. A value of '1' indicates that the heater is currently on.

Padus16 (index)

Attribute(s):

Brief:  "Explicit 16 bit pad in unsigned short"

Instance(s):  spare, spares

Explicit 16 bit pad in unsigned short

ResRitSnsrSel (index)

Attribute(s):

Brief:  "Selected RSVR and RIT sensors"

Instance(s):  snsrSel

ResRitStatus (index)

Attribute(s):

Brief:  "Heat pipe RIT and reservoir sensors status"

Instance(s):  snsrStatus

TempCelsius (index)

Attribute(s):

Brief:  "Temperature converted to celsius."

Instance(s):  temps

Fixed point scaled by 8 bits (256).
