"Diagnostic ITC Configuration" (APP/LHK)

View Options: (help)

Focus:	Maintenance / Operation
Structures:	Abstract / Concrete

Context:

Description:

Contains the configuration for ITC task message and command confirmation levels.

Layout:  (show detail; help)

Diagnostic ITC Configuration (DiagItcCfg) Telemetry Packet Format
0x	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
000	Version=0			T=0	SH	APID=0x292
002	SF		Sequence Count
004	Packet Length=109
006	Timestamp
00E	Padus16 spare[0-2]
014	ItcConfig siu[0-17]
038	ItcConfig epu0[0-9]
04C	ItcConfig epu1[0-9]
060	ItcConfig epu2[0-9]

Fields:

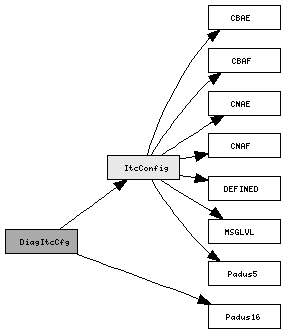

ItcConfig (index)

Attribute(s):

Brief:  "ITC configuration of a single task"

Instance(s):  epu0, epu1, epu2, siu

ITC configuration of a single task

Padus16 (index)

Attribute(s):

Brief:  "Explicit 16 bit pad in unsigned short"

Instance(s):  spare

Explicit 16 bit pad in unsigned short
