"Diagnostic GASU counter packet (both GEM and EBM)" (APP/LHK)

View Options: (help)

Focus:	Maintenance / Operation
Structures:	Abstract / Concrete

Context:

Description:

Diagnostic GASU counter packet (both GEM and EBM)

Layout:  (show detail; help)

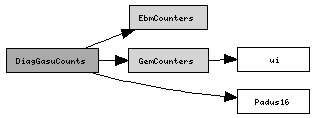

Diagnostic GASU counter packet (both GEM and EBM) (DiagGasuCounts) Telemetry Packet Format
0x	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
000	Version=0			T=0	SH	APID=0x2AF
002	SF		Sequence Count
004	Packet Length=109
006	Timestamp
00E	Padus16 rsv
010	GemCounters gem
030	EbmCounters ebm

Fields:

EbmCounters (index)

Attribute(s):

Brief:  "EBM counters"

Instance(s):  ebm

EBM counters

GemCounters (index)

Attribute(s):

Brief:  "GEM counters"

Instance(s):  gem

GEM counters

Padus16 (index)

Attribute(s):

Brief:  "Explicit 16 bit pad in unsigned short"

Instance(s):  rsv

Explicit 16 bit pad in unsigned short
