"Diagnostic Command Statistics Packet 1" (APP/LHK)
View Options: (help)
Context:
Description:
-
Contains task level command statistics.
Layout: (show detail; help)

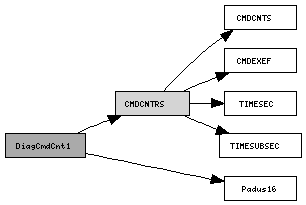

| Diagnostic Command Statistics Packet 1 (DiagCmdCnt1) Telemetry Packet Format |
||||||||||||||||
| 0x | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
| 000 | Version=0 | T=0 | SH | APID=0x289 | ||||||||||||
| 002 | SF | Sequence Count | ||||||||||||||
| 004 | Packet Length=109 | |||||||||||||||
| 006 | Timestamp | |||||||||||||||
| 00E | Padus16 spares[0-2] | |||||||||||||||
| 014 | CMDCNTRS cntrs[0-5] | |||||||||||||||
Fields:
-
Attribute(s):
-
Brief: "Command Counters"
-
Instance(s): cntrs
Structure to hold per task command count information.
-
Attribute(s):
-
Brief: "Explicit 16 bit pad in unsigned short"
-
Instance(s): spares
Explicit 16 bit pad in unsigned short
