"Instructs the LAT to power off tem, epu, acd" (DAQ/ISIS)

ITOS Mnemonic:  LISISPOWEROFF

View Options: (help)

Focus:	Maintenance / Operation
Structures:	Abstract / Concrete

Context:

Description:

Command instructs the LAT to power off some components (where some may be one, several or all).

Layout:  (show detail; help)

Instructs the LAT to power off tem, epu, acd (PowerOff) Telecommand Packet Format
0x	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
000	Version=0			T=1	SH	APID=0x688:18
002	SF=3		Sequence Count
004	Packet Length=112
006	0	Function Code=18
008	tem_off_cfg tem
010	epu_off_cfg epu
012	acd_off_cfg acd
014	UWRD pad
016	Packet Checksum

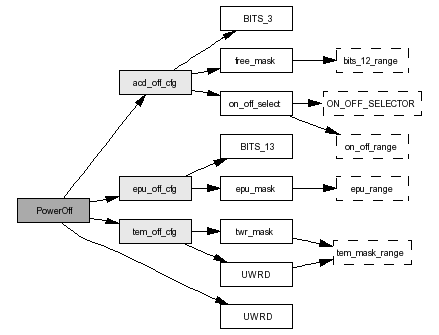

Fields:

acd_off_cfg (index)

Attribute(s):

Brief:  "Identifies the FREE boards to power off"

Instance(s):  acd

epu_off_cfg (index)

Attribute(s):

Brief:  "Identifies the EPUs to power off"

Instance(s):  epu

tem_off_cfg (index)

Attribute(s):

Brief:  "Specifies the TEMs and/or towers to power off"

Instance(s):  tem

UWRD (index)

Attribute(s):

Brief:  "Unsigned 16-bit integer"

Instance(s):  pad
