"Notification main power feed turned off" (DAQ/ISIS)
ITOS Mnemonic: LISISMAINFEEDON
View Options: (help)
Context:
Description:
-
The MainFeedOn command is part of the power on sequence and is sent to the LAT to indicate that the Main Feed switch has been closed. The LAT can now continue with the initialisation of the LCB-CRU-PDU chain.
Layout: (show detail; help)
| Notification main power feed turned off (MainFeedOn) Telecommand Packet Format |
||||||||||||||||
| 0x | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
| 000 | Version=0 | T=1 | SH | APID=0x688:16 | ||||||||||||
| 002 | SF=3 | Sequence Count | ||||||||||||||
| 004 | Packet Length=16 | |||||||||||||||
| 006 | 0 | Function Code=16 | ||||||||||||||
| 008 | siu_cfg siu | |||||||||||||||
| 00A | Packet Checksum | |||||||||||||||

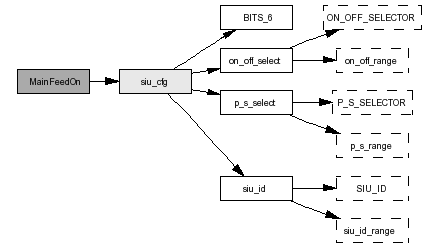

Fields:
-
Attribute(s):
-
Brief: "SIU on configuration"
-
Instance(s): siu
