L.ih File Reference

Singly linked list, inline version. More...

#include "PBI/Inline.h"
#include "PBI/Attribute.h"
#include "PBS/L_pubdefs.h"

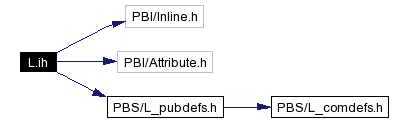

Include dependency graph for L.ih:

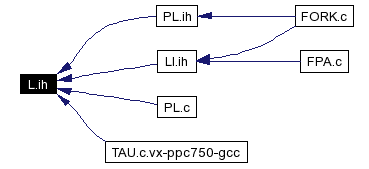

This graph shows which files directly or indirectly include this file:

Defines
#define	L__EXP_PROTO   INLINE_USR_EXP_PROTO
	Export Prototype spec.
#define	L__LCL_PROTO   INLINE_USR_LCL_PROTO
	Internal Prototype spec.
#define	L__EXP_FNC   INLINE_USR_EXP_FNC
	Export Function declaration.
#define	L__LCL_FNC   INLINE_USR_LCL_FNC
	Internal Function declaration.
Functions
L__EXP_PROTO void	L__append (L_head *dst, L_head *src) ATTR_UNUSED_OK
	Appends the src list members to the dst list.
L__EXP_PROTO void	L__destroy (L_head *list) ATTR_UNUSED_OK
	Destroys the data structures associate with the list.
L__EXP_PROTO int	L__empty (L_head *list) ATTR_UNUSED_OK
	Returns non zero if the list is empty list.
L__EXP_PROTO void	L__init (L_head *list) ATTR_UNUSED_OK
	Initializes a list (singly linked list) to an empty list.
L__EXP_PROTO L_node *	L__insert (L_head *list, L_node *node) ATTR_UNUSED_OK
	Adds a node to the tail of a previously initialized list.
L__EXP_PROTO L_node *	L__jam (L_head *list, L_node *node) ATTR_UNUSED_OK
	Adds a node to the head of a previously initialized list.
L__EXP_PROTO void	L__prepend (L_head *dst, L_head *src) ATTR_UNUSED_OK
	Prepends the src list members to the dst list.
L__EXP_PROTO L_node *	L__remove (L_head *list) ATTR_UNUSED_OK
	Removes the node from the head of a previously initialized list.. An empty list returns NULL as its node.
L__EXP_PROTO L_node *	L__unlink (const L_node *node, L_node *predecessor) ATTR_UNUSED_OK
	Removes the specified node from the list.

---

Detailed Description

Singly linked list, inline version.

Author:

JJRussell - russell@slac.stanford.edu

    CVS $Id: L.ih,v 1.6 2005/10/01 01:00:11 russell Exp $

SYNOPSIS

This defines the inline versions of the L routines. These allow the the user to build non-interlocked singly linked lists. In the non-interlocked form, they offer the slight advantage of being lower overhead, having to maintain only a single link.

See also the non-inlined versions of these routines which offer possible savings in code space and increased modularity at the expense of some performance. The LI routines provide the same functionality with the added feature of being interlocked, and, therefore, thread safe.

---

Function Documentation

L__EXP_FNC void L__append (  L_head *  dst, L_head *  src )

Appends the src list members to the dst list. Parameters: dst  A previously initialized list acting as the destination src  A previously initialized list acting as the source Appends the source list to the destination list. After this operation the destination list will have consist of its original members followed by the members on the source list. The source list will be empty.

L__EXP_FNC void L__destroy (  L_head *  list  )

Destroys the data structures associate with the list. Parameters: list  Pointer to the list to destroy. Currently this routine is effectively a NO-OP, but is provided for upward compatibility, just in case at some time in the future this operations does something meaningful.

L__EXP_FNC int L__empty (  L_head *  list  )

Returns non zero if the list is empty list. Returns: Non zero if the list is empty list, else 0 Parameters: list  Pointer to the list to initialize.

L__EXP_FNC void L__init (  L_head *  list  )

Initializes a list (singly linked list) to an empty list. Parameters: list  Pointer to the list to initialize. The list is initialized to an empty list. This must be done before performing any other operations on the list.

L__EXP_FNC L_node * L__insert (  L_head *  list, L_node *  node )

Adds a node to the tail of a previously initialized list. Parameters: list  A previously initialized list. node  The node to add at the tail of the mode Returns: Pointer to the old tail. This can be used to test whether this was the first item on the list. If return_value == list then empty Adds the specified node to the tail of the list. If all nodes are added with the L__insert routine, the list behaves as a FIFO.

L__EXP_FNC L_node * L__jam (  L_head *  list, L_node *  node )

Adds a node to the head of a previously initialized list. Parameters: list  A previously initialized list. node  The node to add. Returns: Pointer to the old forward link. This can be used to test whether this was the first item on the list. If return_value == list, then empty Adds the specified node to the head of the list. If all nodes are added with the L__jam routine, the list behaves as a LIFO.

L__EXP_FNC void L__prepend (  L_head *  dst, L_head *  src )

Prepends the src list members to the dst list. Parameters: dst  A previously initialized list acting as the destination src  A previously initialized list acting as the source Prepends the source list to the destination list. After this operation the destination list will have consist of its original members preceded by the members on the source list. The source list will be empty.

L__EXP_FNC L_node * L__remove (  L_head *  list  )

Removes the node from the head of a previously initialized list.. An empty list returns NULL as its node. Parameters: list  A previously initialized list. Returns: A pointer to the removed node or NULL if the list is empty. Removes the node at the head of the list. If the list is empty, NULL is returned.

L__EXP_FNC L_node * L__unlink (  const L_node *  node, L_node *  predecessor )

Removes the specified node from the list. Parameters: node  The node to unlink from the list predecessor  The predecessor node. Returns: Pointer to the forward link of the removed node. Unlinks the specified node from a previously initialized list.

---
