LAT-TKR Monitor Report

runID: 797363786
intput file: /sdf/scratch/fermi/1787354/r0797363786_v000_tkrAnalysis.root
reference files:
/sdf/data/fermi/a/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
/sdf/data/fermi/a/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
Start Time: 2026/04/08, 17:56:29
Duration: 5644 seconds
Script version: 1.20
Script tag: $

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.7%
Layer displacement from reference [micron]	NOTE layer displacement, | 39.5/6.2 | > 5.0: Tower 0 Layer Y2 layer displacement, | -25.8/5.1 | > 5.0: Tower 0 Layer X13 layer displacement, | 29.2/5.4 | > 5.0: Tower 0 Layer X14 layer displacement, | -27.0/4.8 | > 5.0: Tower 0 Layer X15 layer displacement, | 29.9/4.0 | > 5.0: Tower 5 Layer Y11 layer displacement, | -97.3/8.5 | > 5.0: Tower 5 Layer Y12 layer displacement, | -32.0/3.8 | > 5.0: Tower 6 Layer Y12 layer displacement, | 41.5/4.8 | > 5.0: Tower 6 Layer Y13 layer displacement, | -25.2/4.7 | > 5.0: Tower 6 Layer Y14 layer displacement, | -28.5/4.9 | > 5.0: Tower 6 Layer Y16 layer displacement, | -37.9/4.9 | > 5.0: Tower 9 Layer Y8 layer displacement, | 24.6/4.0 | > 5.0: Tower 9 Layer Y11
Number of Dead GTFE	ERR Dead GTFE(No.21): Tower 0 Layer X1 Dead GTFE(No.3): Tower 0 Layer Y3
Layer averaged Strip Occupancy	WARN trig-mask required: strip [161]: Tower 3 Layer Y17 data-mask required: strip [161]: Tower 3 Layer Y17
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.8%
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy	ERR layer Occucpancy, 9.2e-02 > 8.0e-02: Tower 3 Layer Y17

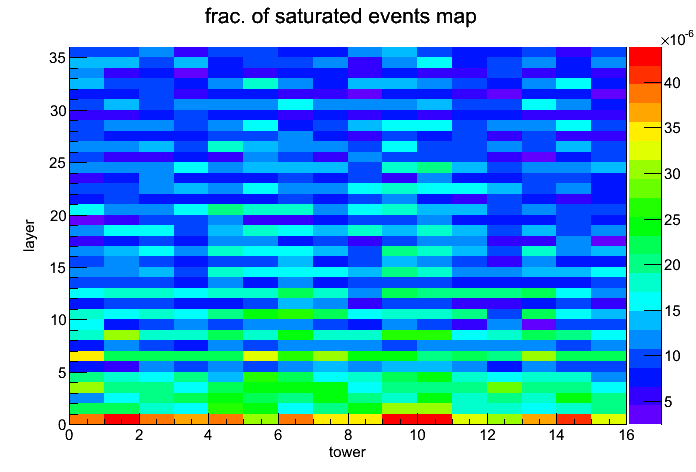

Fraction of Saturated Events
Layer averaged hit inefficinecy	NOTE layer efficiency, 86.1% < 90.0%: Tower 3 Layer Y17
Layer averaged TOT peak distribution
