LAT-TKR Monitor Report

runID: 782172698
intput file: /scratch/36716/r0782172698_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2025/10/14, 22:11:41
Duration: 4270 seconds
Script version: 1.22
Script tag: calibTkrUtil-03-00-00

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.6%

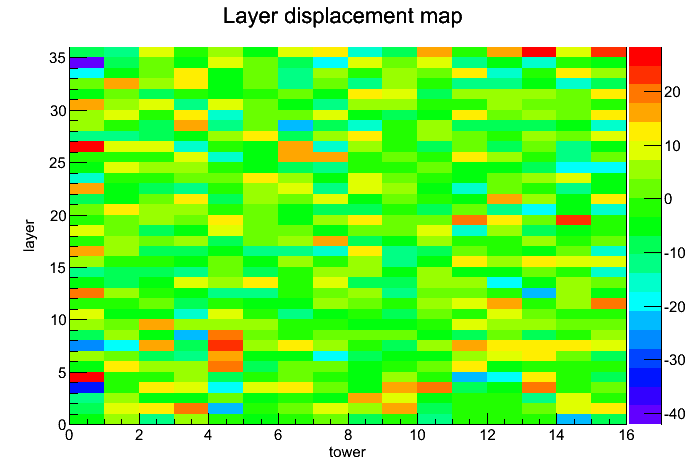

Layer displacement from reference [micron]	NOTE layer displacement, | -33.5/6.2 | > 5.0: Tower 0 Layer Y1 layer displacement, | -24.0/4.8 | > 5.0: Tower 3 Layer Y4
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.21): Tower 0 Layer X1 Dead GTFE(No.3): Tower 0 Layer Y3
Layer averaged Strip Occupancy	WARN trig-mask required: strip [143]: Tower 3 Layer Y17 data-mask required: strip [143]: Tower 3 Layer Y17
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.8%
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy	ERR layer Occucpancy, 9.9e-02 > 8.0e-02: Tower 3 Layer Y17

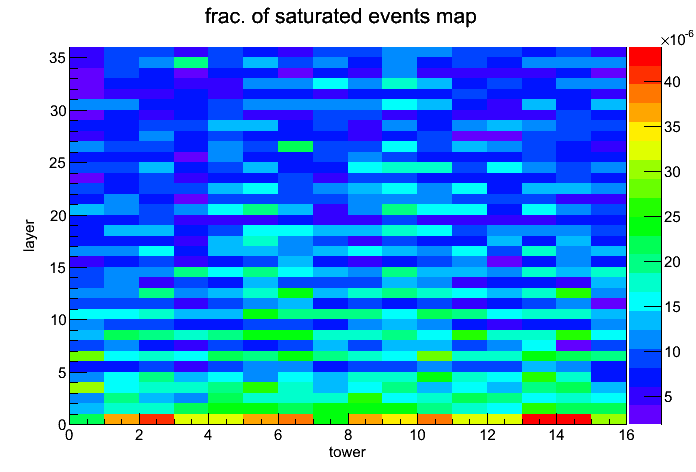

Fraction of Saturated Events
Layer averaged hit inefficinecy	NOTE layer efficiency, 82.4% < 90.0%: Tower 0 Layer X1
Layer averaged TOT peak distribution	WARN TOT peak outlier: 4.1: Tower 3 Layer Y0 TOT peak outlier: 4.1: Tower 9 Layer X1 TOT peak outlier: 5.5: Tower 10 Layer Y7
