LAT-TKR Monitor Report

runID: 751748152
intput file: /scratch/7960/r0751748152_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2024/10/27, 18:55:55
Duration: 4334 seconds
Script version: 1.22
Script tag: calibTkrUtil-03-00-00

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 100.0%
Layer displacement from reference [micron]	NOTE layer displacement, | 43.8/8.7 | > 5.0: Tower 0 Layer Y2
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.21): Tower 0 Layer X1
Layer averaged Strip Occupancy	WARN trig-mask required: strip [1485]: Tower 5 Layer Y0 data-mask required: strip [1485]: Tower 5 Layer Y0
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.8%
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy

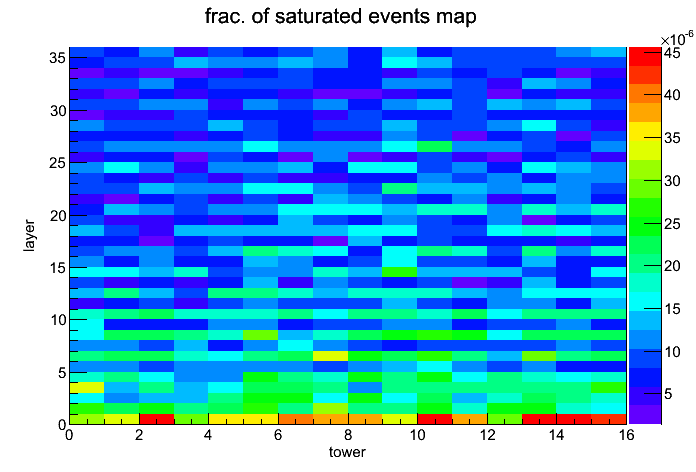

Fraction of Saturated Events
Layer averaged hit inefficinecy	NOTE layer efficiency, 84.0% < 90.0%: Tower 0 Layer Y4 layer efficiency, 85.7% < 90.0%: Tower 3 Layer Y17
Layer averaged TOT peak distribution	WARN TOT peak outlier: 4.1: Tower 6 Layer Y0 TOT peak outlier: 2.9: Tower 6 Layer Y4 TOT peak outlier: 4.1: Tower 8 Layer X0 TOT peak outlier: 3.4: Tower 11 Layer Y0 TOT peak outlier: 3.0: Tower 13 Layer Y2 TOT peak outlier: 3.3: Tower 15 Layer X1
