LAT-TKR Monitor Report

runID: 709213203
intput file: /scratch/48169/r0709213203_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2023/06/23, 11:40:06
Duration: 4222 seconds
Script version: 1.22
Script tag: calibTkrUtil-03-00-00

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.6%

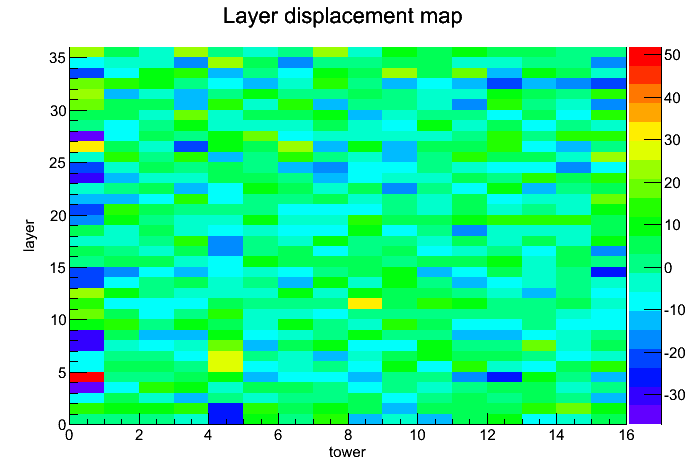

Layer displacement from reference [micron]	NOTE layer displacement, | -37.1/7.1 | > 5.0: Tower 0 Layer Y1 layer displacement, | 51.8/7.3 | > 5.0: Tower 0 Layer Y2 layer displacement, | -25.9/5.1 | > 5.0: Tower 12 Layer Y2
Number of Dead GTFE	ERR Dead GTFE(No.21): Tower 0 Layer X1
Layer averaged Strip Occupancy	WARN trig-mask required: strip [794]: Tower 3 Layer X0 data-mask required: strip [794]: Tower 3 Layer X0
Tower averaged hit efficiency	WARN tower efficiency, 97.7% < 98.0%: Tower 0 Lat averaged hit efficiency: 99.8%
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy

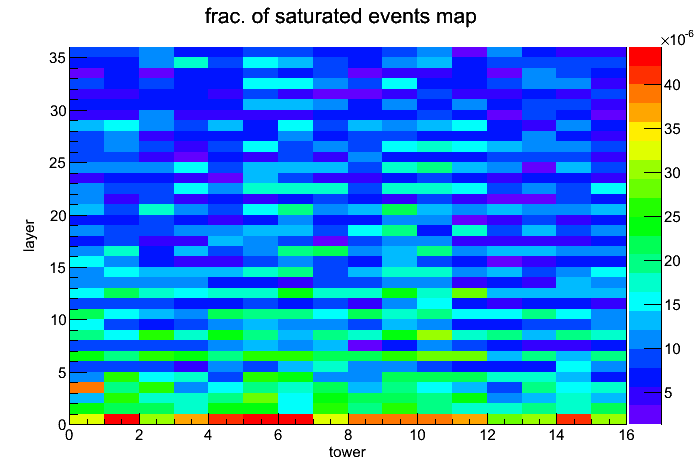

Fraction of Saturated Events
Layer averaged hit inefficinecy	NOTE layer efficiency, 81.8% < 90.0%: Tower 0 Layer X1 layer efficiency, 84.4% < 90.0%: Tower 0 Layer Y4 layer efficiency, 86.4% < 90.0%: Tower 0 Layer X7 layer efficiency, 77.8% < 90.0%: Tower 3 Layer Y17
Layer averaged TOT peak distribution	WARN TOT peak outlier: 3.9: Tower 4 Layer Y0 TOT peak outlier: 2.8: Tower 9 Layer Y1 TOT peak outlier: 4.0: Tower 10 Layer X2
