LAT-TKR Monitor Report

runID: 699457703
intput file: /scratch/12145/r0699457703_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2023/03/02, 13:48:26
Duration: 5684 seconds
Script version: 1.22
Script tag: calibTkrUtil-03-00-00

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.7%
Layer displacement from reference [micron]	NOTE layer displacement, | 37.1/5.9 | > 5.0: Tower 0 Layer Y2 layer displacement, | -25.2/3.8 | > 5.0: Tower 12 Layer Y2
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.21): Tower 0 Layer X1
Layer averaged Strip Occupancy	WARN trig-mask required: strip [794]: Tower 3 Layer X0 trig-mask required: strip [114]: Tower 3 Layer Y17 data-mask required: strip [794]: Tower 3 Layer X0 data-mask required: strip [114]: Tower 3 Layer Y17
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.8%
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy	ERR layer Occucpancy, 9.6e-02 > 8.0e-02: Tower 3 Layer Y17

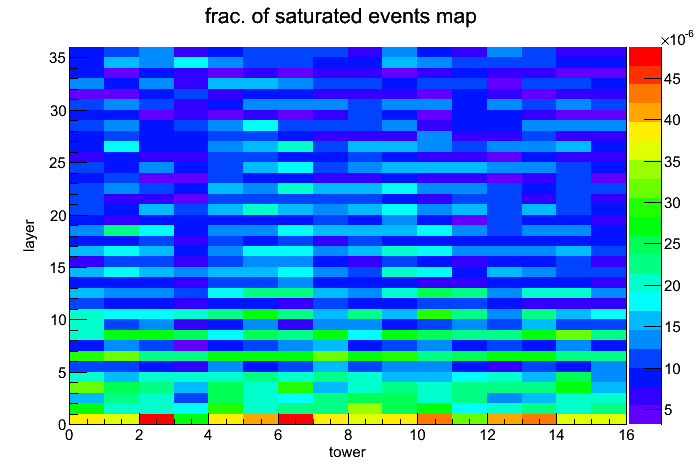

Fraction of Saturated Events
Layer averaged hit inefficinecy	NOTE layer efficiency, 86.4% < 90.0%: Tower 3 Layer Y17
Layer averaged TOT peak distribution
