LAT-TKR Monitor Report

runID: 654189371
intput file: /scratch/45810/r0654189371_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2021/09/24, 15:16:14
Duration: 5133 seconds
Script version: 1.22
Script tag: calibTkrUtil-03-00-00

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.9%
Layer displacement from reference [micron]	NOTE layer displacement, | 40.8/7.3 | > 5.0: Tower 0 Layer Y2 layer displacement, | -21.4/3.9 | > 5.0: Tower 12 Layer Y2
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.21): Tower 0 Layer X1
Layer averaged Strip Occupancy	WARN trig-mask required: strip [1208]: Tower 0 Layer X15 trig-mask required: strip [248]: Tower 1 Layer Y15 data-mask required: strip [1208]: Tower 0 Layer X15 data-mask required: strip [248]: Tower 1 Layer Y15
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.8%
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy

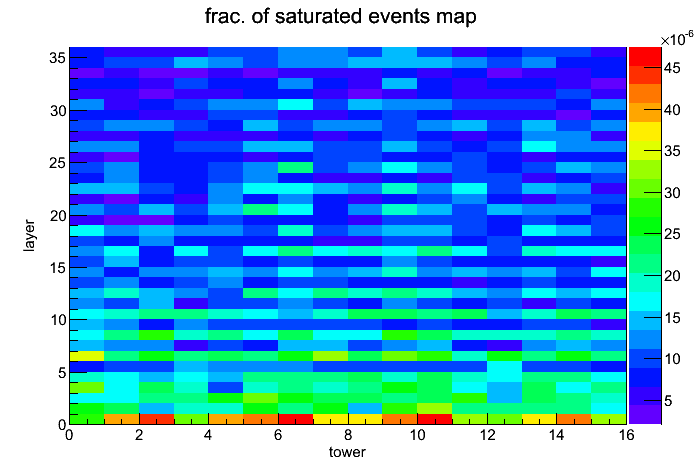

Fraction of Saturated Events
Layer averaged hit inefficinecy	NOTE layer efficiency, 89.7% < 90.0%: Tower 0 Layer Y3 layer efficiency, 84.4% < 90.0%: Tower 0 Layer Y4
Layer averaged TOT peak distribution	WARN TOT peak outlier: 5.5: Tower 8 Layer Y0
