LAT-TKR Monitor Report

runID: 626284911
intput file: /scratch/5800/r0626284911_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2020/11/05, 16:01:54
Duration: 5790 seconds
Script version: 1.22
Script tag: calibTkrUtil-03-00-00

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.8%
Layer displacement from reference [micron]	NOTE layer displacement, | 43.8/5.8 | > 5.0: Tower 0 Layer Y2 layer displacement, | -32.8/6.3 | > 5.0: Tower 0 Layer Y3 layer displacement, | 27.2/5.4 | > 5.0: Tower 0 Layer X13 layer displacement, | 25.4/4.9 | > 5.0: Tower 4 Layer X4 layer displacement, | -20.8/3.5 | > 5.0: Tower 6 Layer Y12 layer displacement, | -21.6/4.3 | > 5.0: Tower 12 Layer X4
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.21): Tower 0 Layer X1
Layer averaged Strip Occupancy	WARN trig-mask required: strip [231]: Tower 5 Layer X4 data-mask required: strip [231]: Tower 5 Layer X4
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.8%
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy

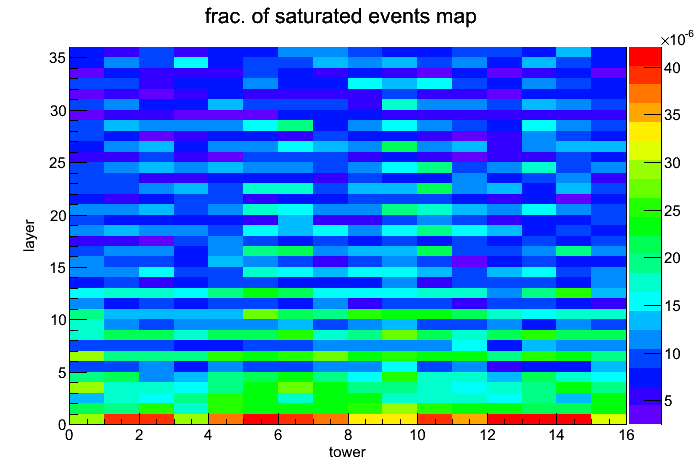

Fraction of Saturated Events
Layer averaged hit inefficinecy	NOTE layer efficiency, 85.4% < 90.0%: Tower 0 Layer X1 layer efficiency, 87.2% < 90.0%: Tower 0 Layer Y4 layer efficiency, 87.2% < 90.0%: Tower 3 Layer Y17
Layer averaged TOT peak distribution
