LAT-TKR Monitor Report

runID: 617505747
intput file: /scratch/29136/r0617505747_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2020/07/27, 01:22:30
Duration: 5691 seconds
Script version: 1.22
Script tag: calibTkrUtil-03-00-00

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.5%

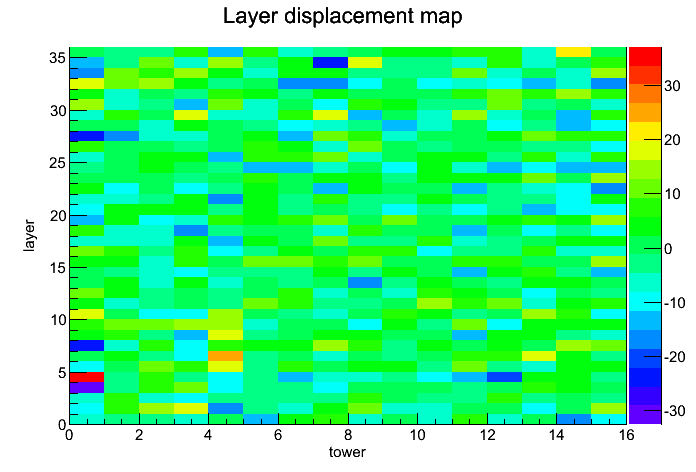

Layer displacement from reference [micron]	NOTE layer displacement, | -32.7/5.3 | > 5.0: Tower 0 Layer Y1 layer displacement, | 37.1/5.8 | > 5.0: Tower 0 Layer Y2 layer displacement, | 26.2/4.3 | > 5.0: Tower 4 Layer X3 layer displacement, | -19.4/3.9 | > 5.0: Tower 12 Layer Y2
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.21): Tower 0 Layer X1 Dead GTFE(No.3): Tower 0 Layer Y3
Layer averaged Strip Occupancy	WARN trig-mask required: strip [221]: Tower 3 Layer Y17 trig-mask required: strip [1355]: Tower 12 Layer Y15 data-mask required: strip [221]: Tower 3 Layer Y17 data-mask required: strip [1355]: Tower 12 Layer Y15
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.8%
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy	ERR layer Occucpancy, 8.0e-02 > 8.0e-02: Tower 3 Layer Y17

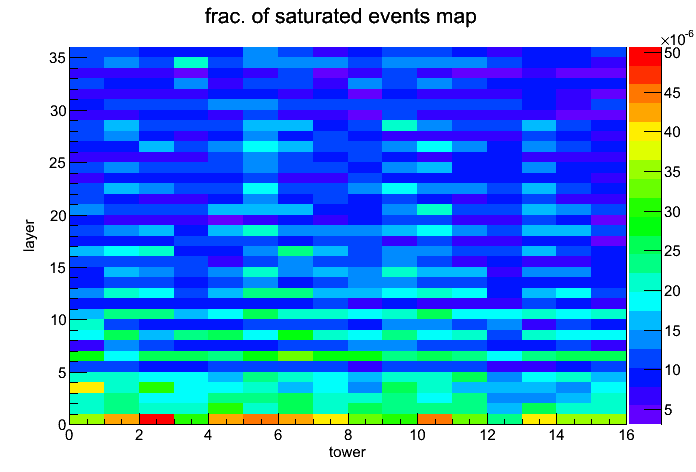

Fraction of Saturated Events
Layer averaged hit inefficinecy	NOTE layer efficiency, 87.5% < 90.0%: Tower 0 Layer Y3 layer efficiency, 86.2% < 90.0%: Tower 0 Layer Y4 layer efficiency, 79.5% < 90.0%: Tower 3 Layer Y17
Layer averaged TOT peak distribution
