LAT-TKR Monitor Report

runID: 616107443
intput file: /scratch/29662/r0616107443_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2020/07/10, 20:57:26
Duration: 4292 seconds
Script version: 1.22
Script tag: calibTkrUtil-03-00-00

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.9%

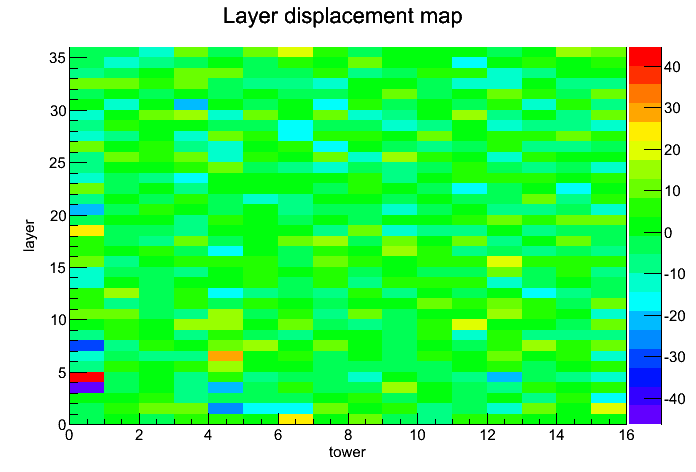

Layer displacement from reference [micron]	NOTE layer displacement, | -46.5/6.5 | > 5.0: Tower 0 Layer Y1 layer displacement, | 44.6/7.6 | > 5.0: Tower 0 Layer Y2
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.21): Tower 0 Layer X1 Dead GTFE(No.3): Tower 0 Layer Y3
Layer averaged Strip Occupancy	WARN trig-mask required: strip [1355]: Tower 12 Layer Y15 data-mask required: strip [1355]: Tower 12 Layer Y15
Tower averaged hit efficiency	WARN tower efficiency, 96.5% < 98.0%: Tower 8 Lat averaged hit efficiency: 99.5%
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%

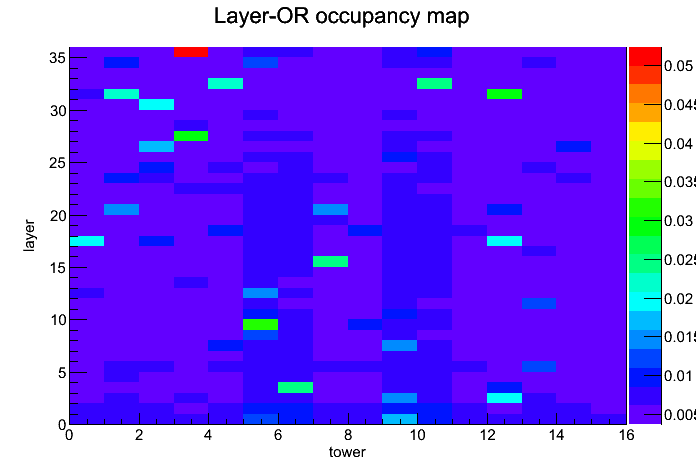

Layer-OR occupancy

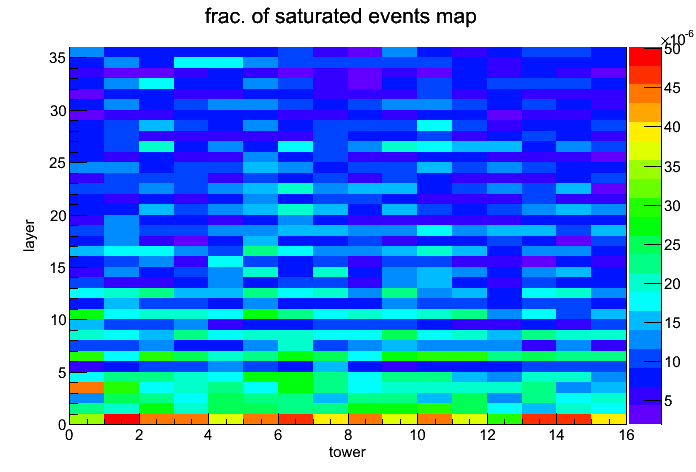

Fraction of Saturated Events
Layer averaged hit inefficinecy	NOTE layer efficiency, 89.3% < 90.0%: Tower 0 Layer Y3 layer efficiency, 72.2% < 90.0%: Tower 3 Layer Y17 layer efficiency, 89.7% < 90.0%: Tower 8 Layer Y15
Layer averaged TOT peak distribution	WARN TOT peak outlier: 3.7: Tower 2 Layer Y0 TOT peak outlier: 2.7: Tower 5 Layer X0 TOT peak outlier: 4.1: Tower 10 Layer X8
