LAT-TKR Monitor Report

runID: 608087285
intput file: /scratch/17102/r0608087285_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2020/04/09, 01:08:08
Duration: 4645 seconds
Script version: 1.22
Script tag: calibTkrUtil-03-00-00

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.6%
Layer displacement from reference [micron]	NOTE layer displacement, | 44.6/7.3 | > 5.0: Tower 0 Layer Y2
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.21): Tower 0 Layer X1 Dead GTFE(No.3): Tower 0 Layer Y3
Layer averaged Strip Occupancy	WARN trig-mask required: strip [1355]: Tower 12 Layer Y15 data-mask required: strip [1355]: Tower 12 Layer Y15
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.8%
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy

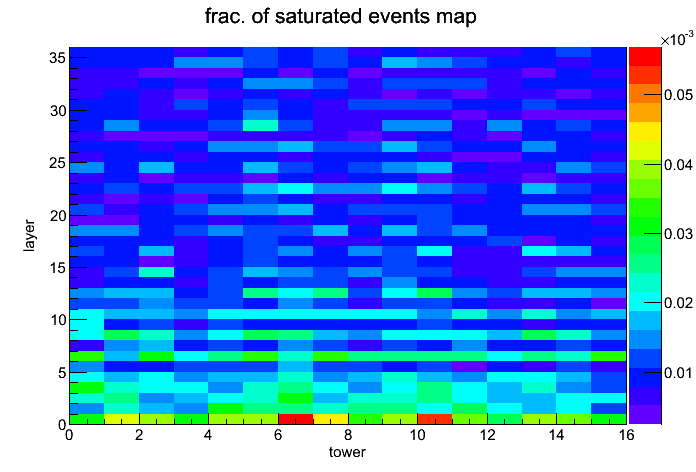

Fraction of Saturated Events
Layer averaged hit inefficinecy	NOTE layer efficiency, 72.0% < 90.0%: Tower 3 Layer Y17
Layer averaged TOT peak distribution	WARN TOT peak outlier: 3.6: Tower 4 Layer X4 TOT peak outlier: 3.5: Tower 5 Layer X2 TOT peak outlier: 4.0: Tower 11 Layer Y0 TOT peak outlier: 5.6: Tower 15 Layer Y1
