LAT-TKR Monitor Report

runID: 607824492
intput file: /scratch/15114/r0607824492_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2020/04/06, 00:08:15
Duration: 4458 seconds
Script version: 1.22
Script tag: calibTkrUtil-03-00-00

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.5%

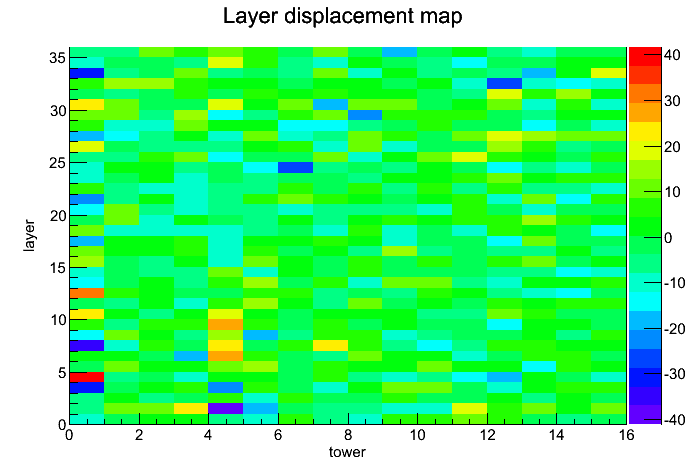

Layer displacement from reference [micron]	NOTE layer displacement, | 41.7/8.0 | > 5.0: Tower 0 Layer Y2
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.21): Tower 0 Layer X1 Dead GTFE(No.3): Tower 0 Layer Y3
Layer averaged Strip Occupancy	WARN trig-mask required: strip [1355]: Tower 12 Layer Y15 data-mask required: strip [1355]: Tower 12 Layer Y15
Tower averaged hit efficiency	WARN tower efficiency, 98.0% < 98.0%: Tower 8 Lat averaged hit efficiency: 99.7%
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy

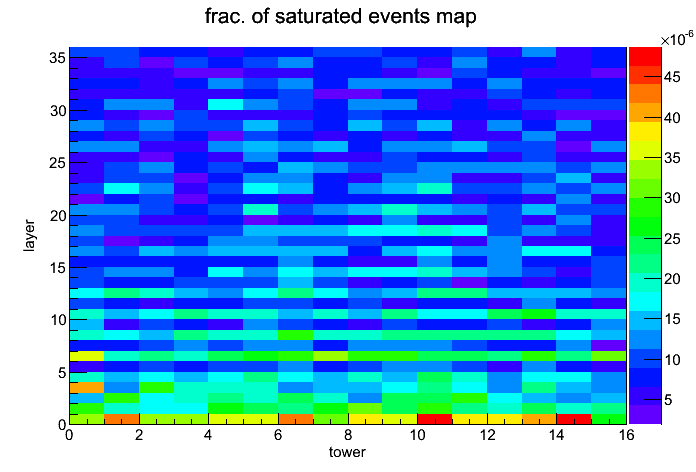

Fraction of Saturated Events
Layer averaged hit inefficinecy	NOTE layer efficiency, 82.6% < 90.0%: Tower 0 Layer X1 layer efficiency, 82.4% < 90.0%: Tower 3 Layer Y17
Layer averaged TOT peak distribution	WARN TOT peak outlier: 3.1: Tower 0 Layer X2 TOT peak outlier: 2.5: Tower 1 Layer X0 TOT peak outlier: 2.7: Tower 8 Layer X1 TOT peak outlier: 3.8: Tower 10 Layer Y1 TOT peak outlier: 4.2: Tower 11 Layer X0
