LAT-TKR Monitor Report

runID: 557802843
intput file: /scratch/15731/r0557802843_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2018/09/05, 01:14:06
Duration: 5692 seconds
Script version: 1.22
Script tag: calibTkrUtil-03-00-00

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.6%
Layer displacement from reference [micron]	NOTE layer displacement, | -30.8/5.0 | > 5.0: Tower 0 Layer Y1 layer displacement, | 35.2/5.6 | > 5.0: Tower 0 Layer Y2 layer displacement, | -29.4/5.4 | > 5.0: Tower 0 Layer Y3 layer displacement, | 20.7/4.1 | > 5.0: Tower 3 Layer X14 layer displacement, | -18.8/3.4 | > 5.0: Tower 12 Layer Y2 layer displacement, | -22.4/4.3 | > 5.0: Tower 12 Layer Y16
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.21): Tower 0 Layer X1
Layer averaged Strip Occupancy	WARN trig-mask required: strip [201]: Tower 2 Layer X17 trig-mask required: strip [2]: Tower 12 Layer Y9 data-mask required: strip [201]: Tower 2 Layer X17 data-mask required: strip [2]: Tower 12 Layer Y9
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.8%
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy	ERR layer Occucpancy, 9.0e-02 > 8.0e-02: Tower 12 Layer Y9

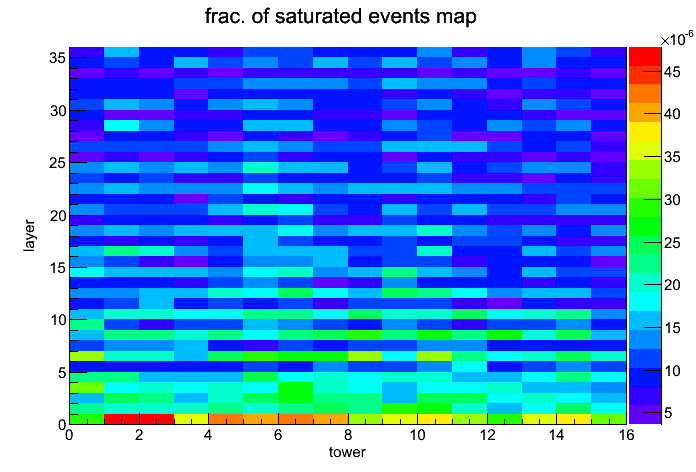

Fraction of Saturated Events
Layer averaged hit inefficinecy	NOTE layer efficiency, 88.5% < 90.0%: Tower 0 Layer X1 layer efficiency, 84.0% < 90.0%: Tower 0 Layer Y4 layer efficiency, 78.8% < 90.0%: Tower 3 Layer Y17
Layer averaged TOT peak distribution
