LAT-TKR Monitor Report

runID: 551703659
intput file: /scratch/4444/r0551703659_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2018/06/26, 11:01:02
Duration: 5691 seconds
Script version: 1.22
Script tag: calibTkrUtil-03-00-00

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.9%
Layer displacement from reference [micron]	NOTE layer displacement, | -43.1/5.3 | > 5.0: Tower 0 Layer Y1 layer displacement, | 42.6/5.9 | > 5.0: Tower 0 Layer Y2 layer displacement, | -18.8/3.6 | > 5.0: Tower 12 Layer Y2
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.3): Tower 0 Layer Y3
Layer averaged Strip Occupancy	WARN trig-mask required: strip [201]: Tower 2 Layer X17 trig-mask required: strip [251]: Tower 3 Layer Y17 data-mask required: strip [201]: Tower 2 Layer X17 data-mask required: strip [251]: Tower 3 Layer Y17
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.8%
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy	ERR layer Occucpancy, 9.9e-02 > 8.0e-02: Tower 3 Layer Y17

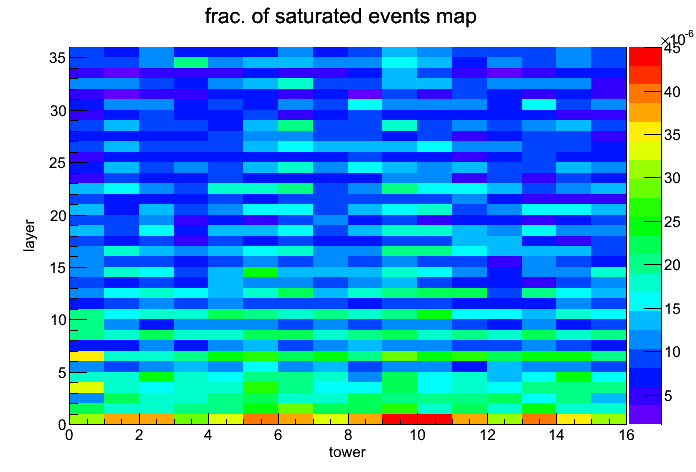

Fraction of Saturated Events
Layer averaged hit inefficinecy
Layer averaged TOT peak distribution
