LAT-TKR Monitor Report

runID: 545376148
intput file: /scratch/31387/r0545376148_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2018/04/14, 05:22:31
Duration: 5691 seconds
Script version: 1.22
Script tag: calibTkrUtil-03-00-00

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.7%
Layer displacement from reference [micron]	NOTE layer displacement, | -26.1/4.9 | > 5.0: Tower 0 Layer Y1 layer displacement, | 29.5/5.8 | > 5.0: Tower 0 Layer Y2 layer displacement, | -31.0/5.0 | > 5.0: Tower 0 Layer Y3 layer displacement, | 30.2/5.5 | > 5.0: Tower 0 Layer X13 layer displacement, | -15.8/3.1 | > 5.0: Tower 11 Layer Y2 layer displacement, | -19.7/3.2 | > 5.0: Tower 12 Layer Y2
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.21): Tower 0 Layer X1 Dead GTFE(No.3): Tower 0 Layer Y3

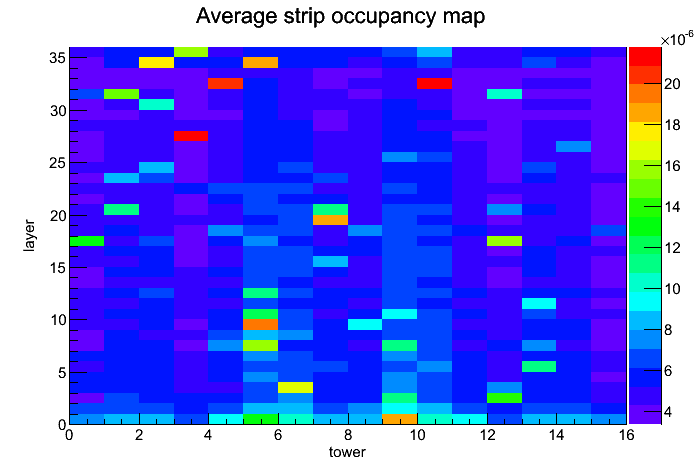

Layer averaged Strip Occupancy	WARN trig-mask required: strip [201]: Tower 2 Layer X17 data-mask required: strip [201]: Tower 2 Layer X17
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.8%
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy

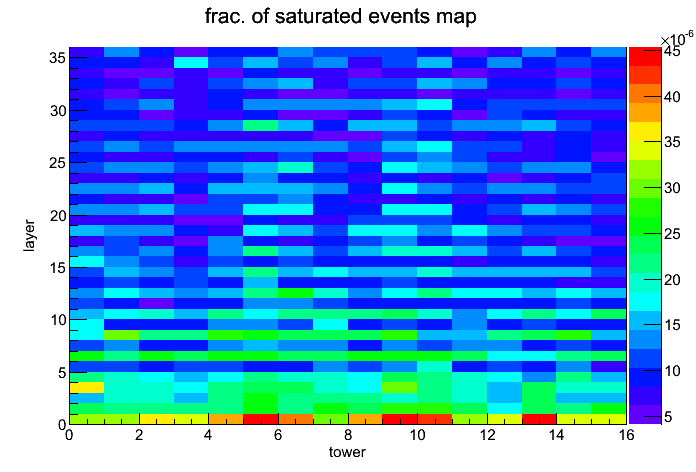

Fraction of Saturated Events
Layer averaged hit inefficinecy	NOTE layer efficiency, 80.0% < 90.0%: Tower 3 Layer Y17
Layer averaged TOT peak distribution	WARN TOT peak outlier: 5.4: Tower 9 Layer X16
