LAT-TKR Monitor Report

runID: 544605882
intput file: /scratch/15574/r0544605882_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2018/04/05, 07:24:45
Duration: 5692 seconds
Script version: 1.22
Script tag: calibTkrUtil-03-00-00

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.8%
Layer displacement from reference [micron]	NOTE layer displacement, | -28.7/4.9 | > 5.0: Tower 0 Layer Y1 layer displacement, | 43.6/5.3 | > 5.0: Tower 0 Layer Y2 layer displacement, | -26.1/5.1 | > 5.0: Tower 0 Layer Y3 layer displacement, | 25.5/4.5 | > 5.0: Tower 3 Layer X0 layer displacement, | 28.3/5.4 | > 5.0: Tower 4 Layer X5 layer displacement, | -16.8/3.3 | > 5.0: Tower 15 Layer Y2
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.21): Tower 0 Layer X1 Dead GTFE(No.3): Tower 0 Layer Y3
Layer averaged Strip Occupancy	WARN trig-mask required: strip [201]: Tower 2 Layer X17 trig-mask required: strip [180]: Tower 3 Layer Y17 trig-mask required: strip [987]: Tower 7 Layer Y9 data-mask required: strip [201]: Tower 2 Layer X17 data-mask required: strip [180]: Tower 3 Layer Y17 data-mask required: strip [987]: Tower 7 Layer Y9
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.7%
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%

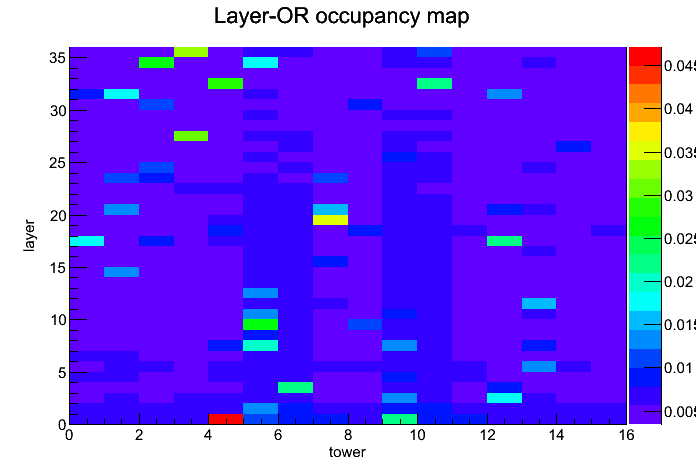

Layer-OR occupancy

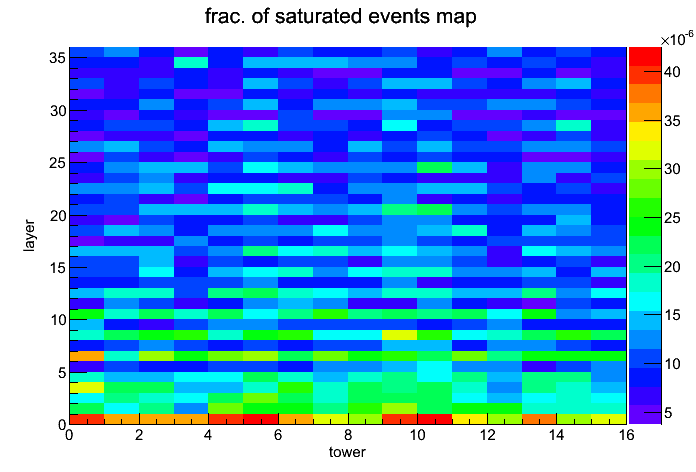

Fraction of Saturated Events
Layer averaged hit inefficinecy	NOTE layer efficiency, 89.2% < 90.0%: Tower 0 Layer X1 layer efficiency, 83.3% < 90.0%: Tower 0 Layer Y4 layer efficiency, 72.2% < 90.0%: Tower 3 Layer Y17
Layer averaged TOT peak distribution
