LAT-TKR Monitor Report

runID: 544554023
intput file: /scratch/17378/r0544554023_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2018/04/04, 17:00:26
Duration: 3021 seconds
Script version: 1.22
Script tag: calibTkrUtil-03-00-00

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.6%

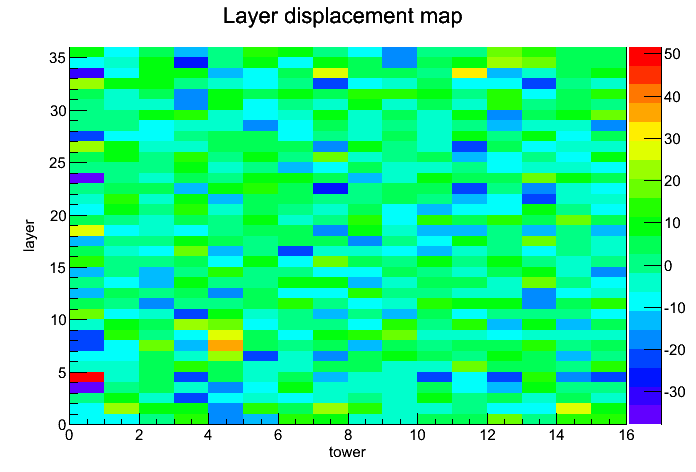

Layer displacement from reference [micron]	NOTE layer displacement, | 51.6/9.9 | > 5.0: Tower 0 Layer Y2
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.21): Tower 0 Layer X1 Dead GTFE(No.3): Tower 0 Layer Y3

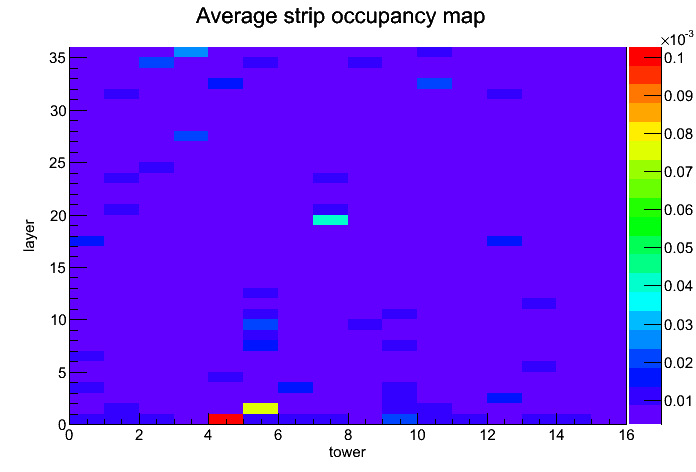

Layer averaged Strip Occupancy	WARN trig-mask required: strip [201]: Tower 2 Layer X17 trig-mask required: strip [180]: Tower 3 Layer Y17 trig-mask required: strip [564, 1343, 200, 521, 580, 582, 522, 571, 169, 193, 550, 565, 1377, 1338, 1277, 228, 577, 575, 250, 955, 560, 177, 556, 520, 1354, 1370, 159, 932, 959, 176, 1390, 602, 551, 162, 594, 184, 188, 540, 558, 574, 182, 155, 1274, 576, 986, 1333, 573, 597, 189, 1366, 557, 947, 174, 513, 568, 583, 1340, 559, 1346, 949, 126, 167, 144, 196, 929]: Tower 4 Layer Y0 trig-mask required: strip [976, 1020, 968, 973, 1006, 990, 970, 983, 962, 1005, 988, 971, 987, 829, 963, 989]: Tower 5 Layer X0 trig-mask required: strip [985, 987]: Tower 7 Layer Y9 data-mask required: strip [201]: Tower 2 Layer X17 data-mask required: strip [180]: Tower 3 Layer Y17 data-mask required: strip [985, 987]: Tower 7 Layer Y9
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.8%
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy	ERR layer Occucpancy, 1.4e-01 > 8.0e-02: Tower 4 Layer Y0 layer Occucpancy, 1.0e-01 > 8.0e-02: Tower 5 Layer X0

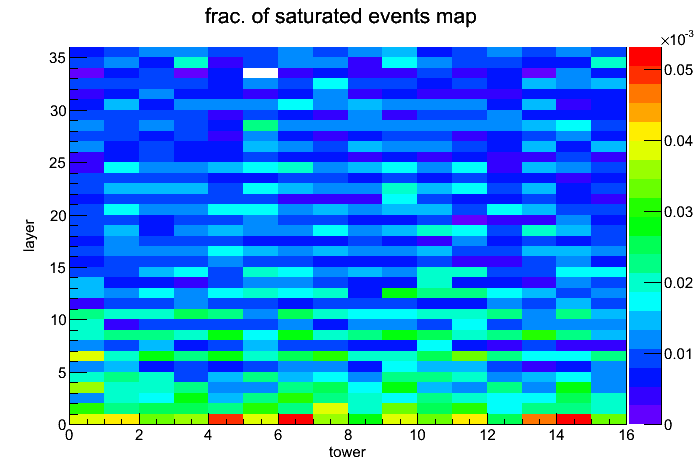

Fraction of Saturated Events
Layer averaged hit inefficinecy	NOTE layer efficiency, 85.7% < 90.0%: Tower 0 Layer X1 layer efficiency, 84.6% < 90.0%: Tower 0 Layer Y4
Layer averaged TOT peak distribution	WARN TOT peak outlier: 3.9: Tower 3 Layer X5 TOT peak outlier: 3.8: Tower 12 Layer X2 TOT peak outlier: 2.7: Tower 14 Layer X1 TOT peak outlier: 3.3: Tower 15 Layer Y1
